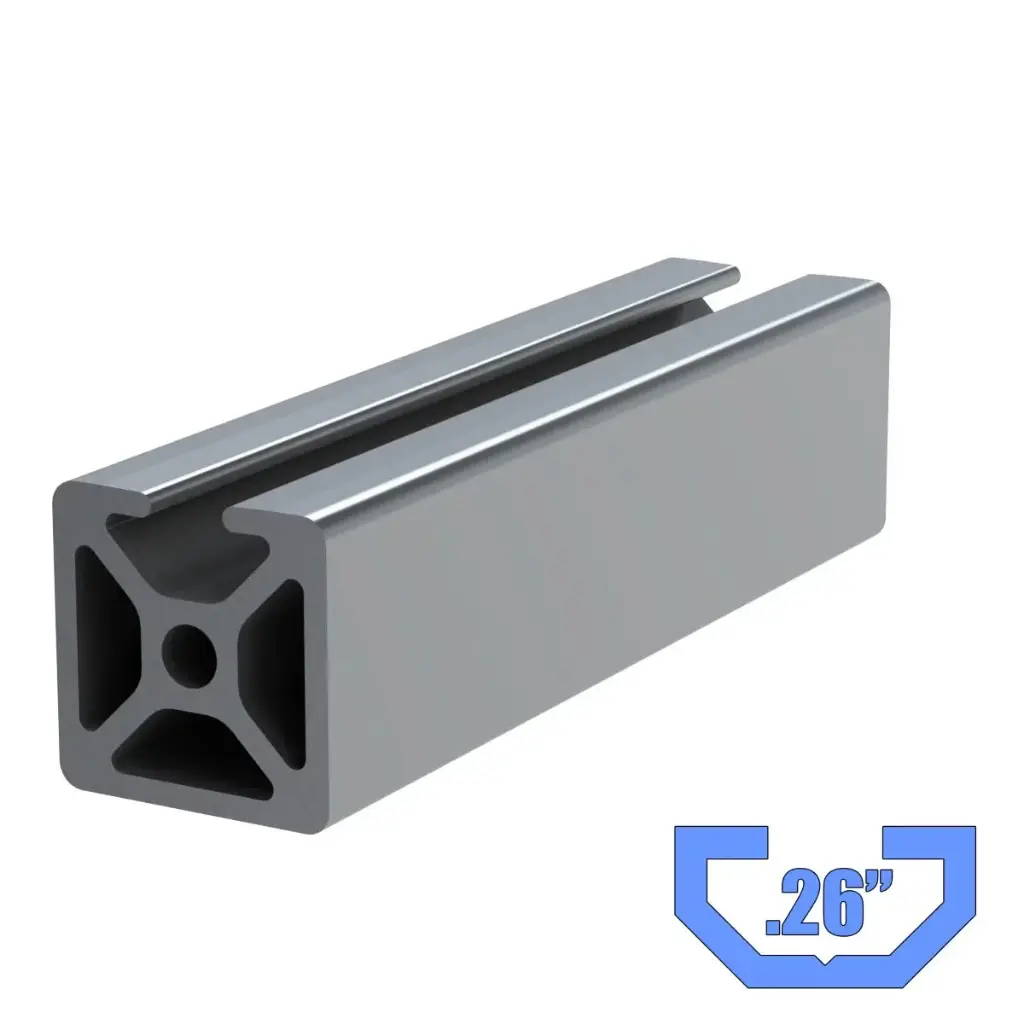

1.0X1.0-1S/240INCH
Description:
Light duty profile ideal for safety guarding, small dust enclosures, small display cases, pet cages, etc. A few applications for this light duty extrusion include (but are not limited to): safety guarding, dust-enclosures, sign frames, small display cases, pet cages, hoods, shelving, partition screens, etc.
Features:
- Light duty.
- Profile ideal for small frames.
- Has one 0.26 inch T-slots.
- Center-bore is ready to be tapped 1/4 or M6.
Technical Specifications:
| Material | 6063-T6 Aluminum |
| Finish | Clear Anodized |
| Weight | 0.576 lbs/ft (0.871 kg/m) |
| Surface Area | 0.500 in2 |
| Length | 240 in (20 ft) (6 meters) |

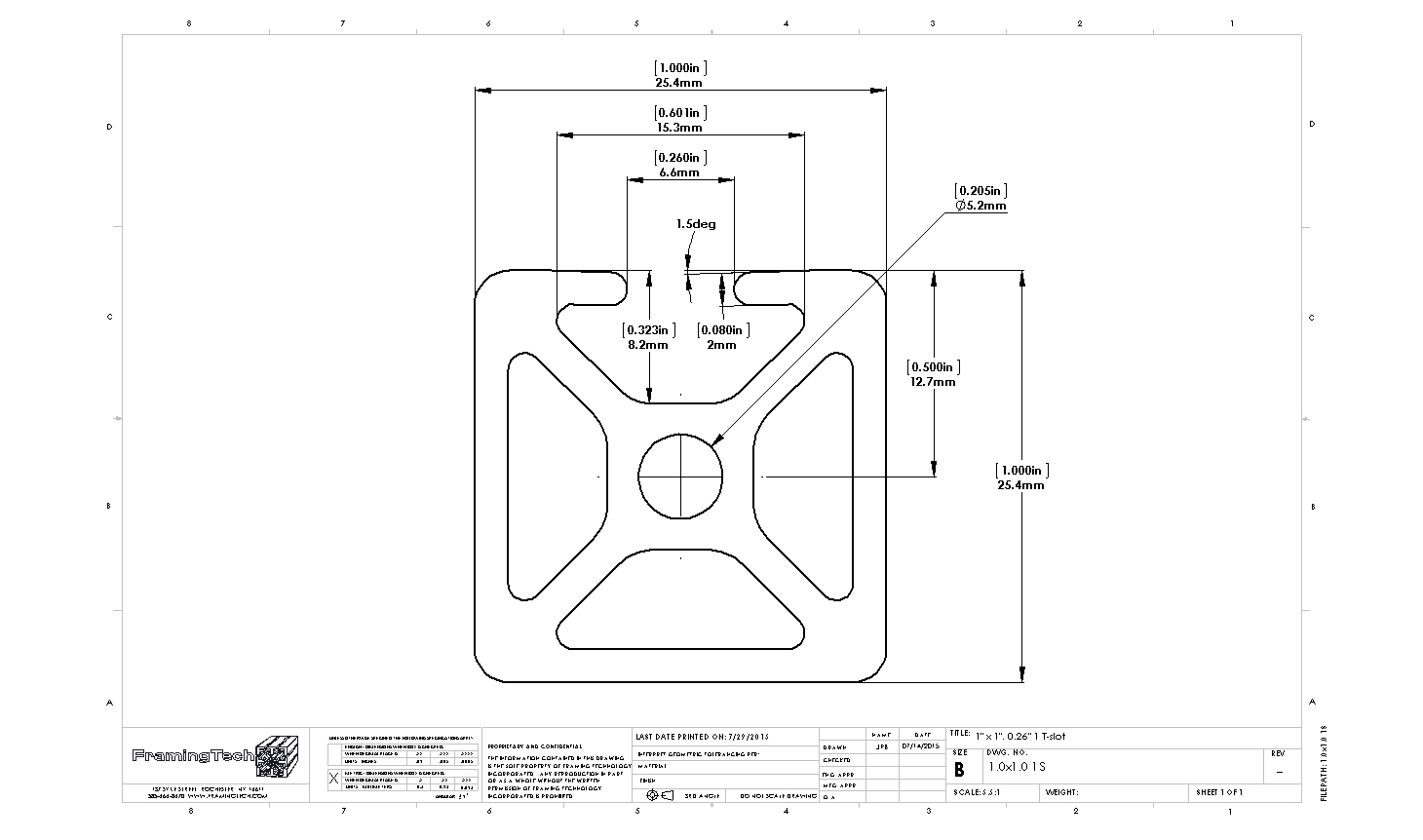

| Moment of Inertia | I(x)= 0.049 in4 , I(Y)= 0.054 in4 |
