1.0X1.0-R/240INCH

1.0X1.0-R/240INCH

$ 76.93 76.932979 USD $ 76.93 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

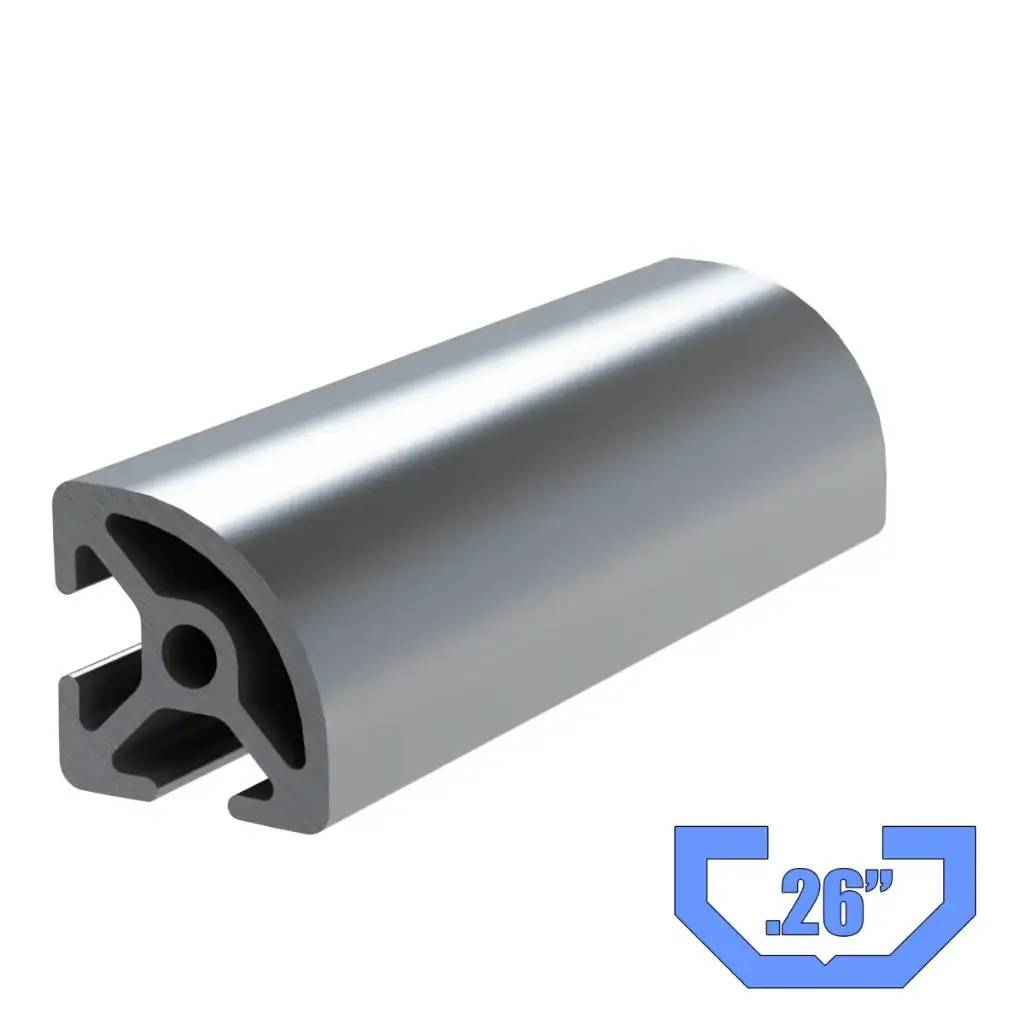

10 Series Extrusion

Features:

Light duty.
Profile with a radius corner ideal for sign frames and display cases.
Has two 0.26 inch T-slots.
Center-bore is ready to be tapped 1/4 or M6.

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.491 lbs/ft (0.742 kg/m)
Surface Area	0.419 in2
Length	240 in (20 ft) (6 meters)
Moment of Inertia	I(x)= 0.030 in4
I(Y)= 0.048 in4

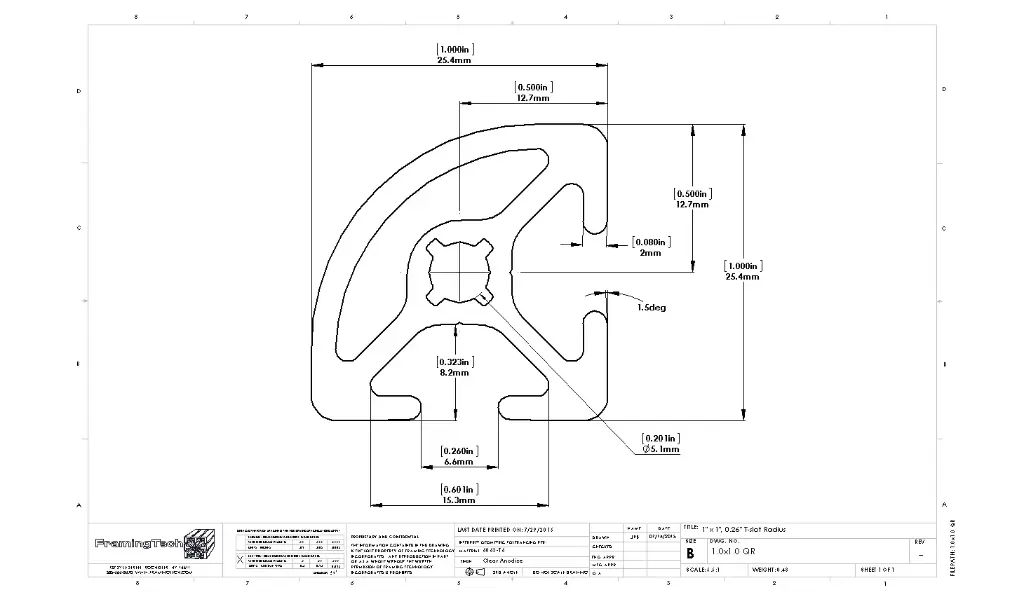

1.0x1.0 R.STEP
