1.5X1.5-1S/240INCH

1.5X1.5-1S/240INCH

$ 170.00 170.0 USD $ 170.00 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

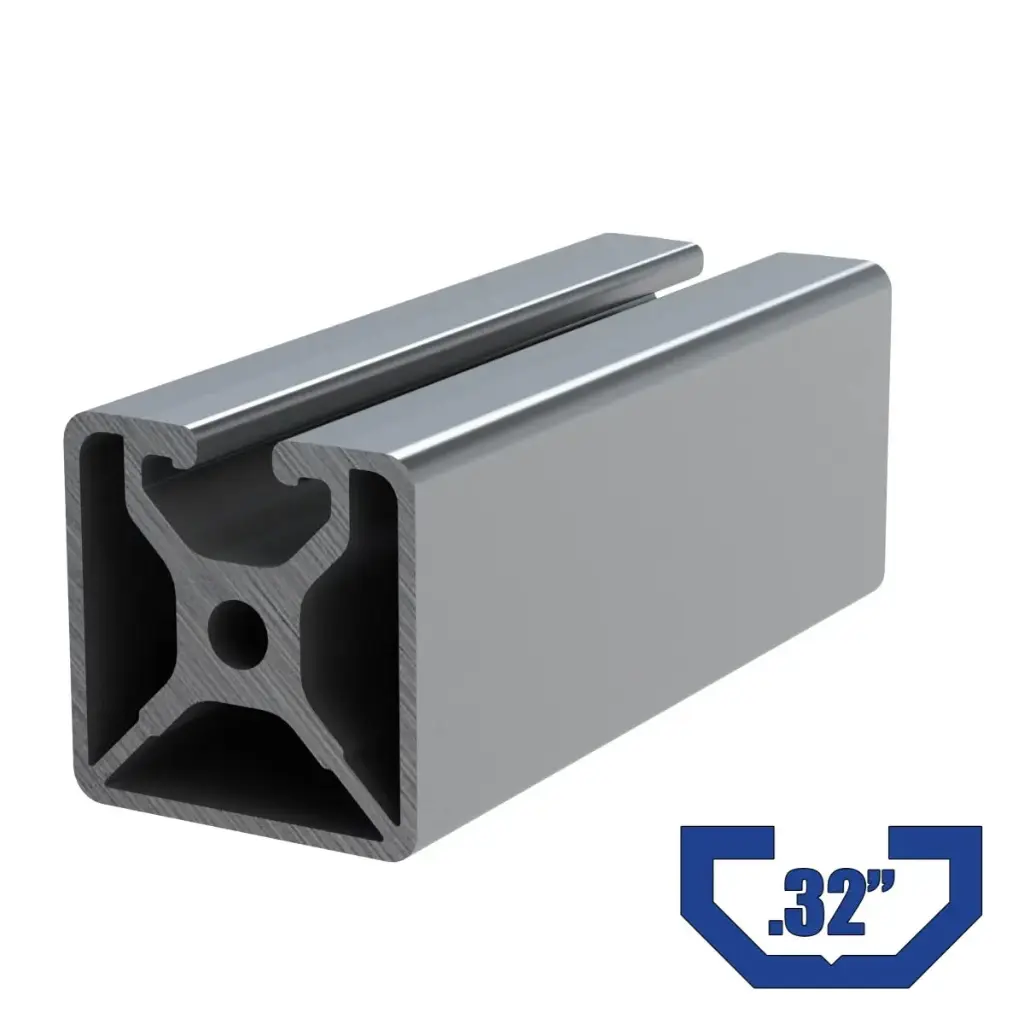

Extrusion 15 Series

Features:

Light duty
Profile ideal for safety guarding, machine frames, and enclosures
Has one 0.32 inch T-slot and 3 smooth sides
Center-bore is for an 5/16-18 tap

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.110 lbs/ft (1.65 kg/m)
Surface Area	0.925 in2
Length	240 in (20 ft) (6 meters)
Moment of Inertia	I(x)= 0.194 in4
I(Y)= 0.194 in4

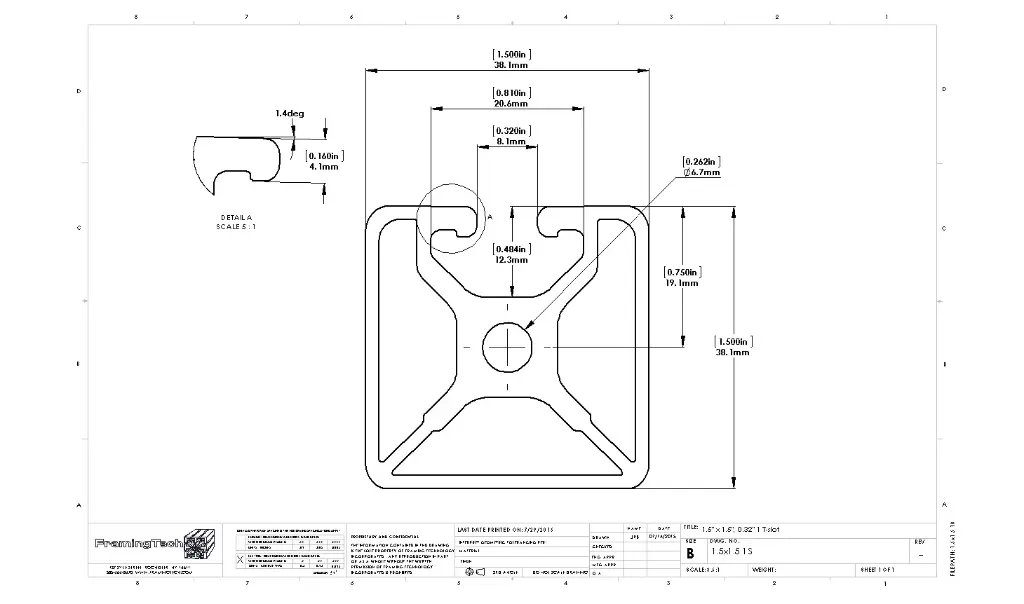

1.5x1.5 1S.STEP
