20X20-05/3M

$ 33.63 33.63 USD $ 33.63 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

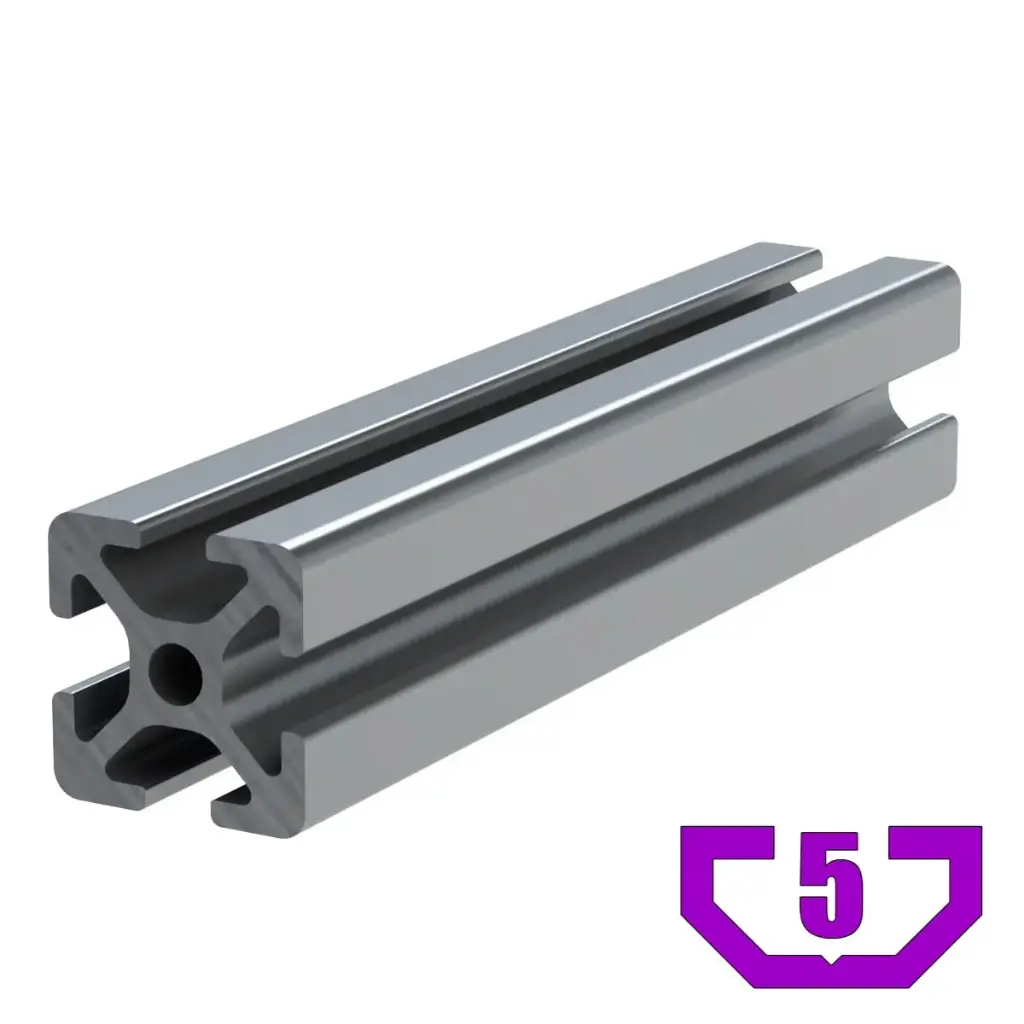

Extrusion 20 Series - 5mm T-slot

Features:

Light duty
Profile ideal for small frames
Has four 5mm T-slots
Center-bore is for an M5

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.491 kg/m (0.330 lbs/ft)
Surface Area	1.82 cm2
Length	3 meters (118 in) (9.8 ft)
Moment of Inertia	I(x)= 0.74 cm4
I(Y)= 0.74 cm4

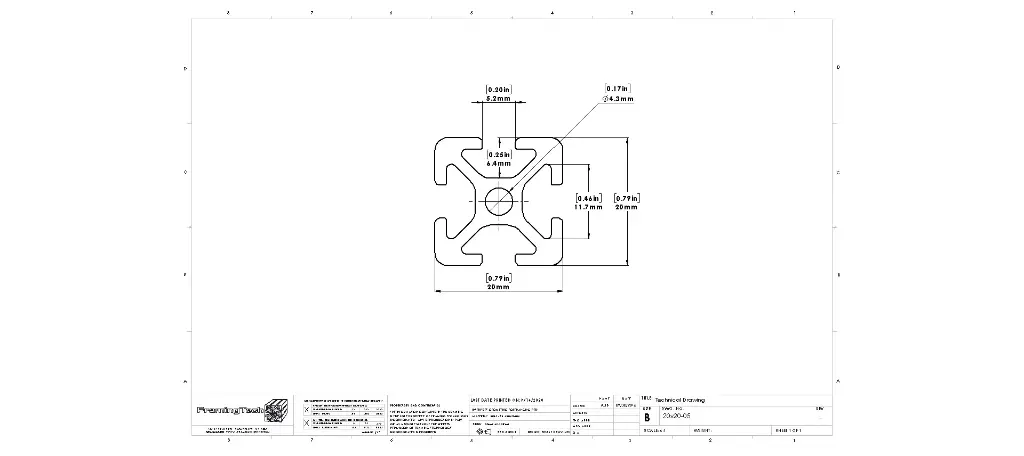

20x20-05.STEP
