20X20-053S/3M

$ 38.59 38.5875 USD $ 38.59 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

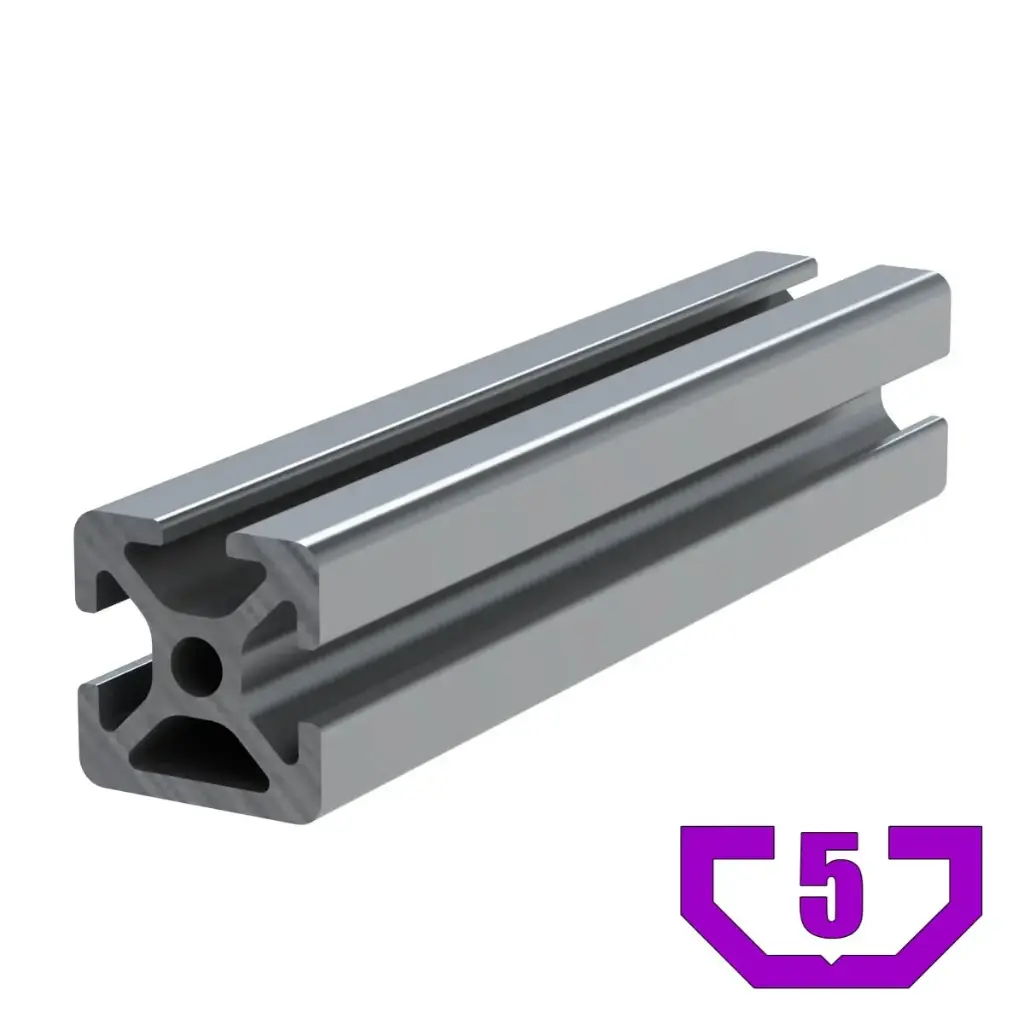

Extrusion 20 Series - 5mm T-slot

Features:

Light duty
Profile ideal for small frames
Has three 5mm T-slots and one smooth side
Center-bore is for an M5

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.52 kg/m (0.349 lbs/ft)
Surface Area	1.92 cm2
Length	3 meters (118 in) (9.8 ft)
Moment of Inertia	I(x)= 0.82 cm4
I(Y)= 0.75 cm4

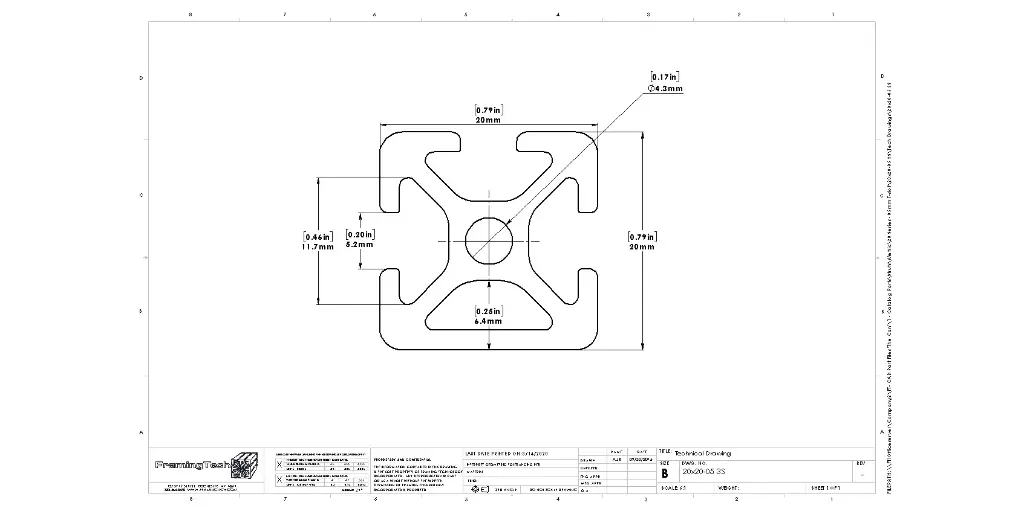

20x20-05 3S.STEP
