20X20-05R/3M

$ 37.99 37.99215 USD $ 37.99 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

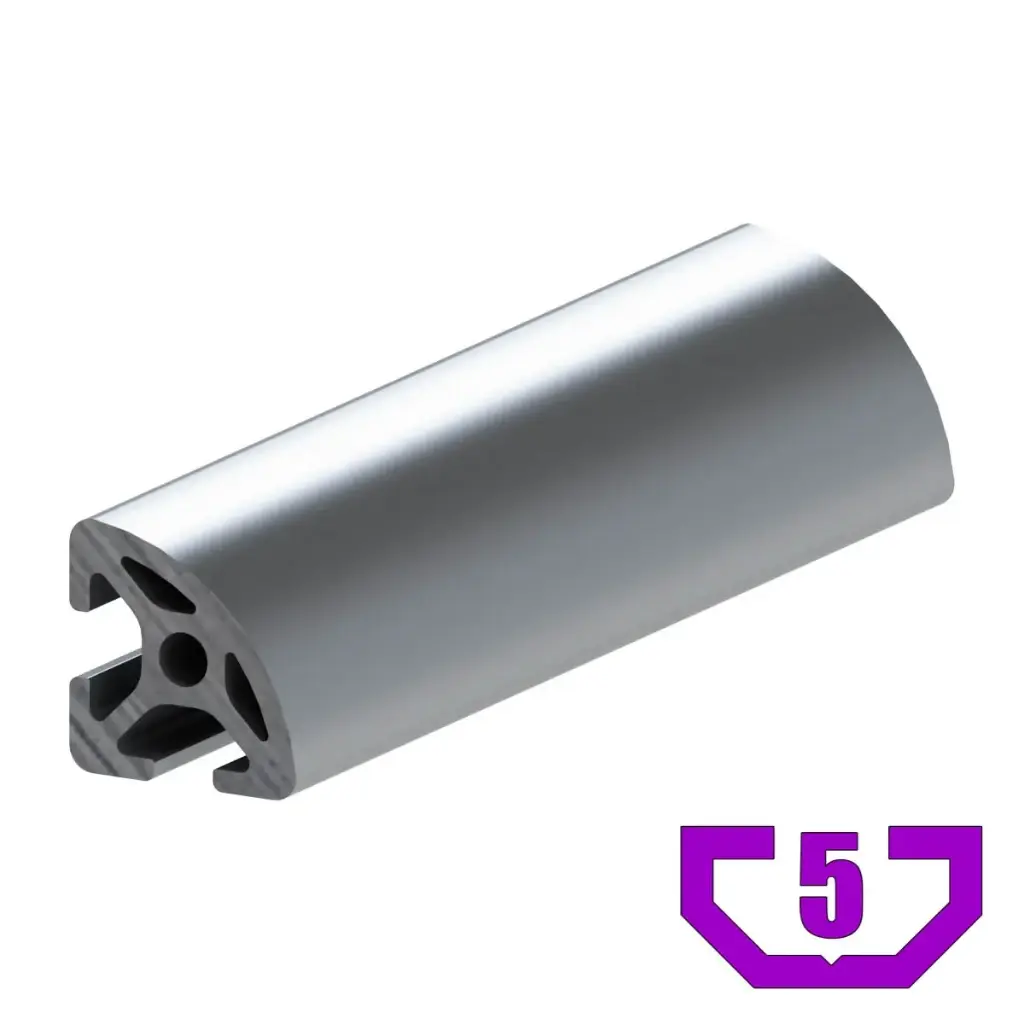

Extrusion 20 Series - 5mm T-slot

Features:

Light duty
Profile ideal for small frames
Has two adjacent 5mm T-slots with a radius corner
Center-bore is for an M5

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.47 kg/m (0.316 lbs/ft)
Surface Area	1.72 cm2
Length	3 meters (118 in) (9.8 ft)
Moment of Inertia	I(x)= 0.58 cm4
I(Y)= 0.58 cm4

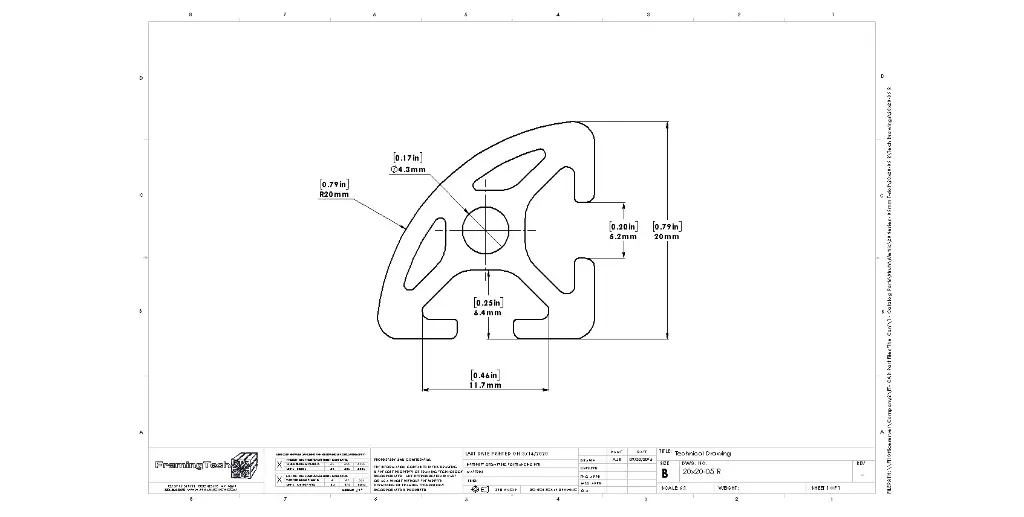

20x20-05 R.STEP
