20X20-R/3M

$ 39.00 39.0 USD $ 39.00 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

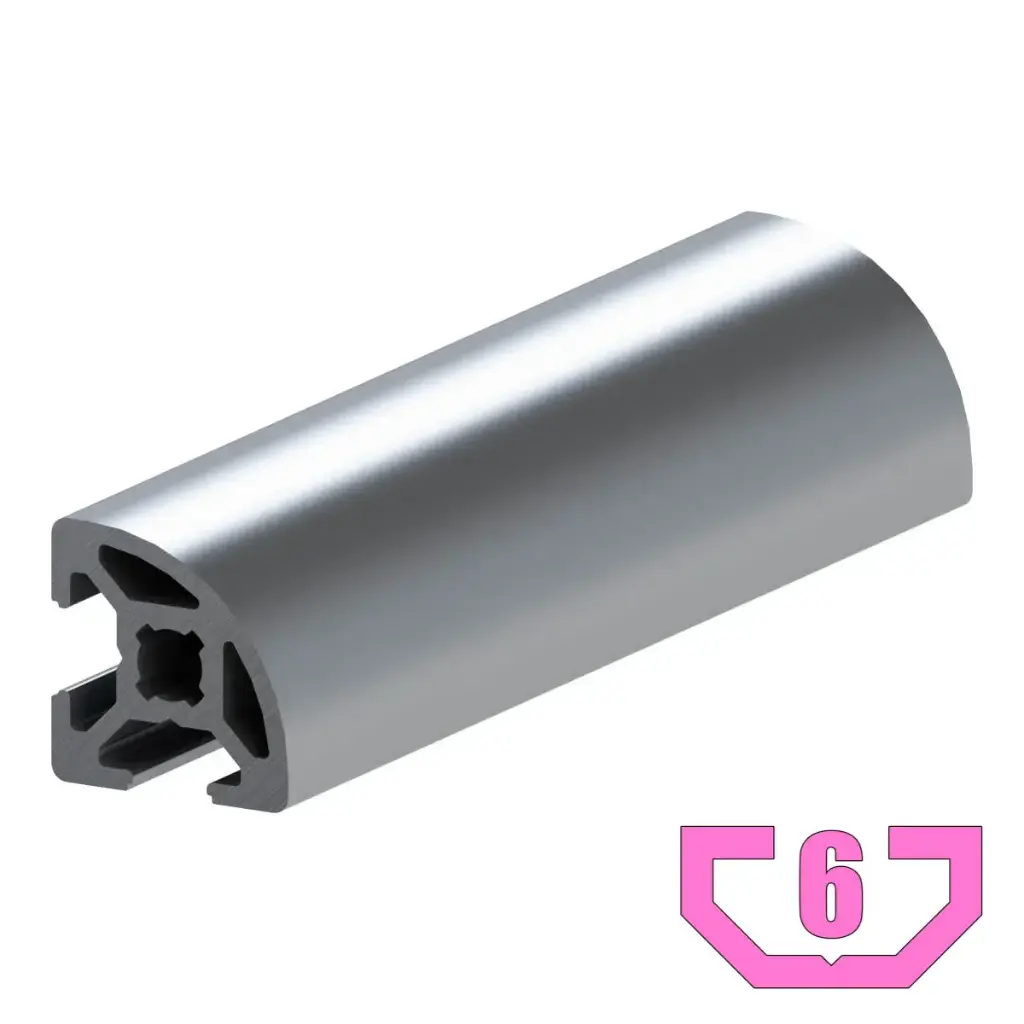

Extrusion 20 Series - 6mm T-slot

Features:

Light duty
Profile with a radius corner
Has two adjacent 6mm T-slots
Center-bore is for an M6 or 1/4-20 tap

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.40 kg/m (0.269 lbs/ft)
Surface Area	1.60 cm2
Length	3 meters (118 in) (9.8 ft)
Moment of Inertia	I(x)= 0.58 cm4
I(Y)= 0.58 cm4

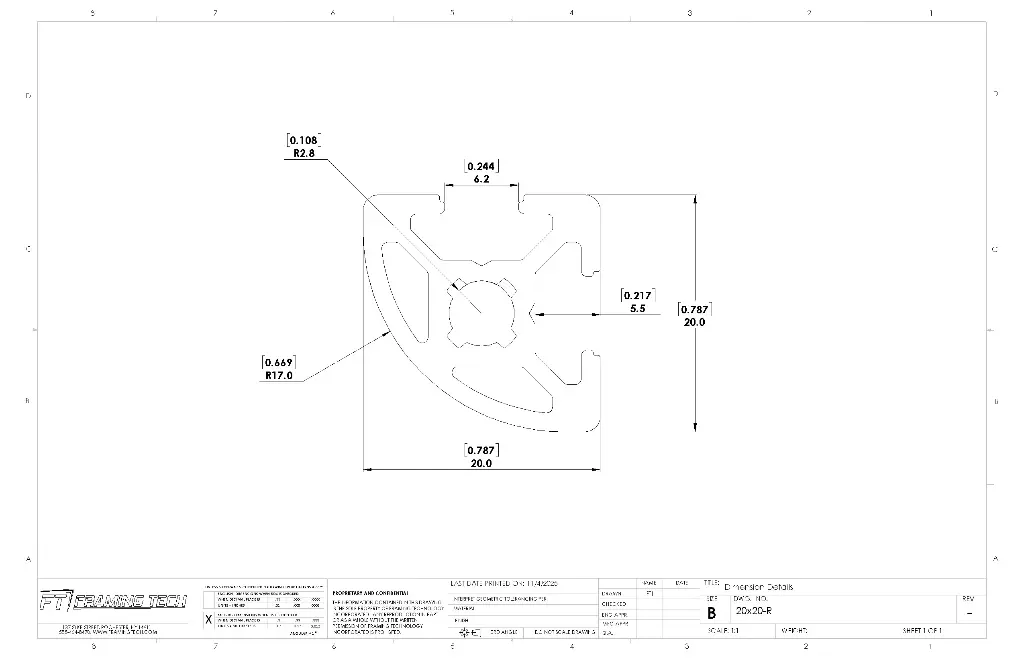

20x20-R.STEP
