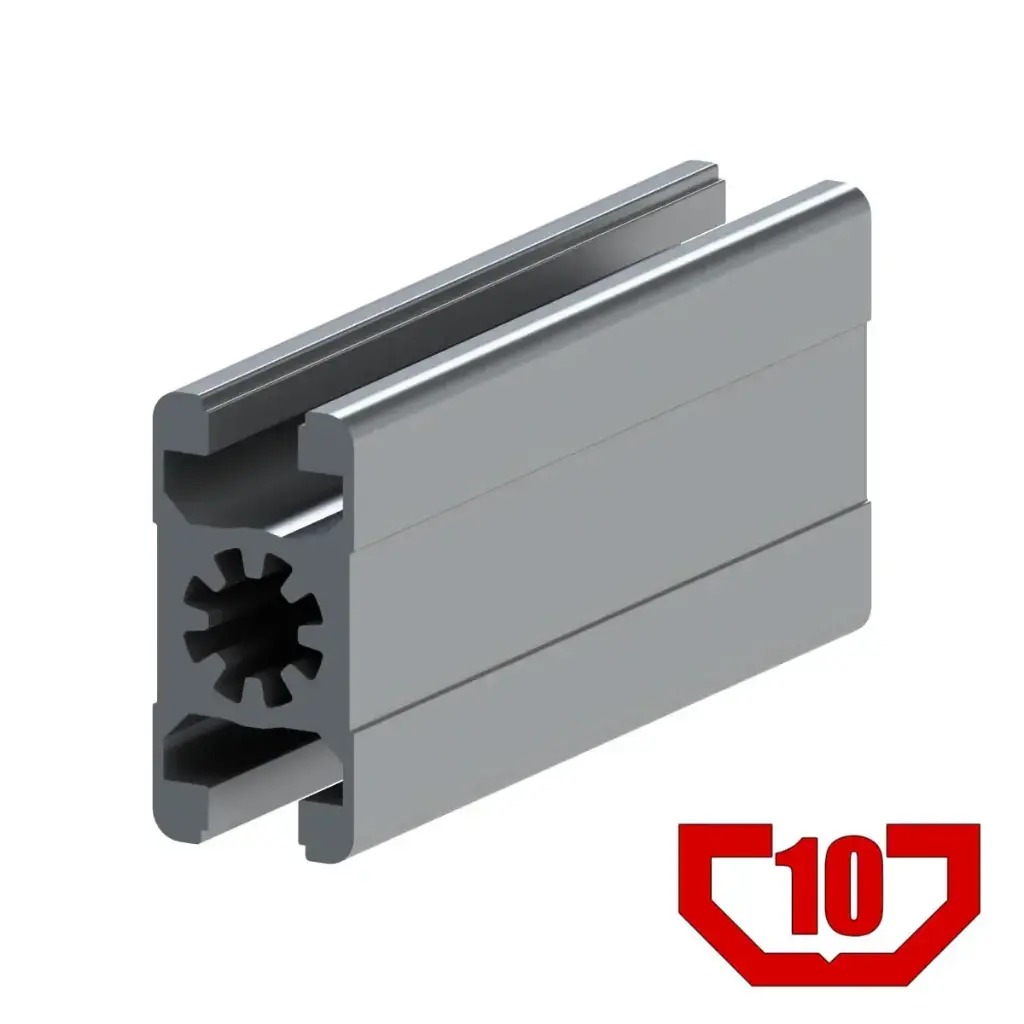

22.5mm x 45mm T-Slot Profile - 2 (10mm) TSlots Opposite (22.5mm), 2 Smooth Sides Opposite (45mm), Center-bore (M12 or 1/2-13)

https://www.framingtech.com/web/image/product.template/403254/image_1920?unique=59d8a62

$ 97.02 97.02 USD $ 97.02

Length *

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Extrusion 45 Series
Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

SKU: 22.5X45/6M

Features:

  • Medium duty
  • Profile ideal for rails and panel mounting frames in partitions
  • Has two 10mm T-slots
  • Center-bore is for an M12 or 1/2-13 taps

Technical Specifications:

Material6063-T6 Aluminum
FinishClear Anodized
Weight1.22 kg/m (0.827 lbs/ft)
Surface Area4.51 cm2
Length6 meters (236 in) (19.68 ft)
Moment of InertiaI(x)= 6.81 cm4
I(Y)= 2.84 cm4

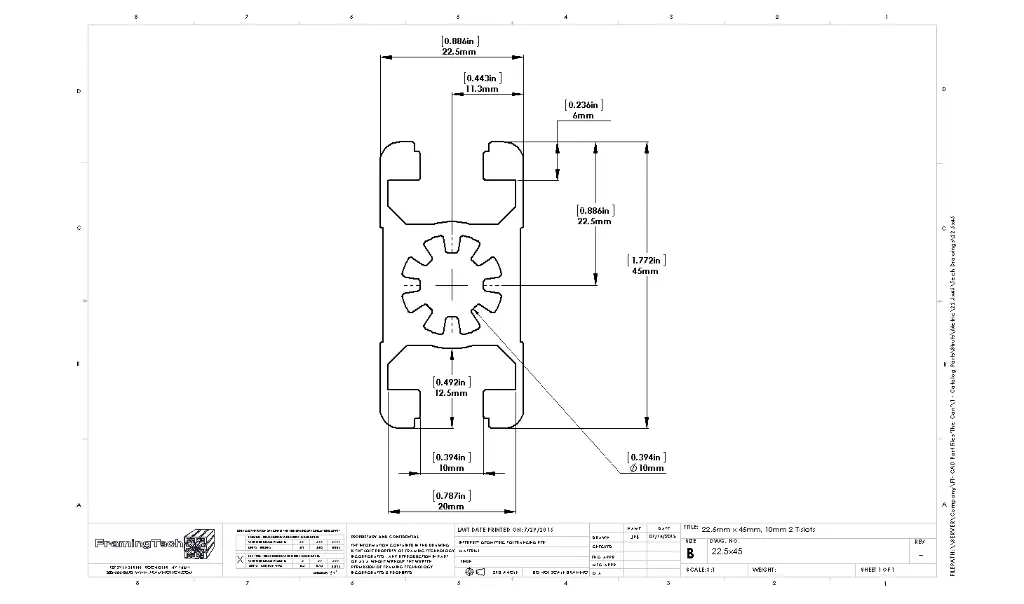

22.5x45.STEP
