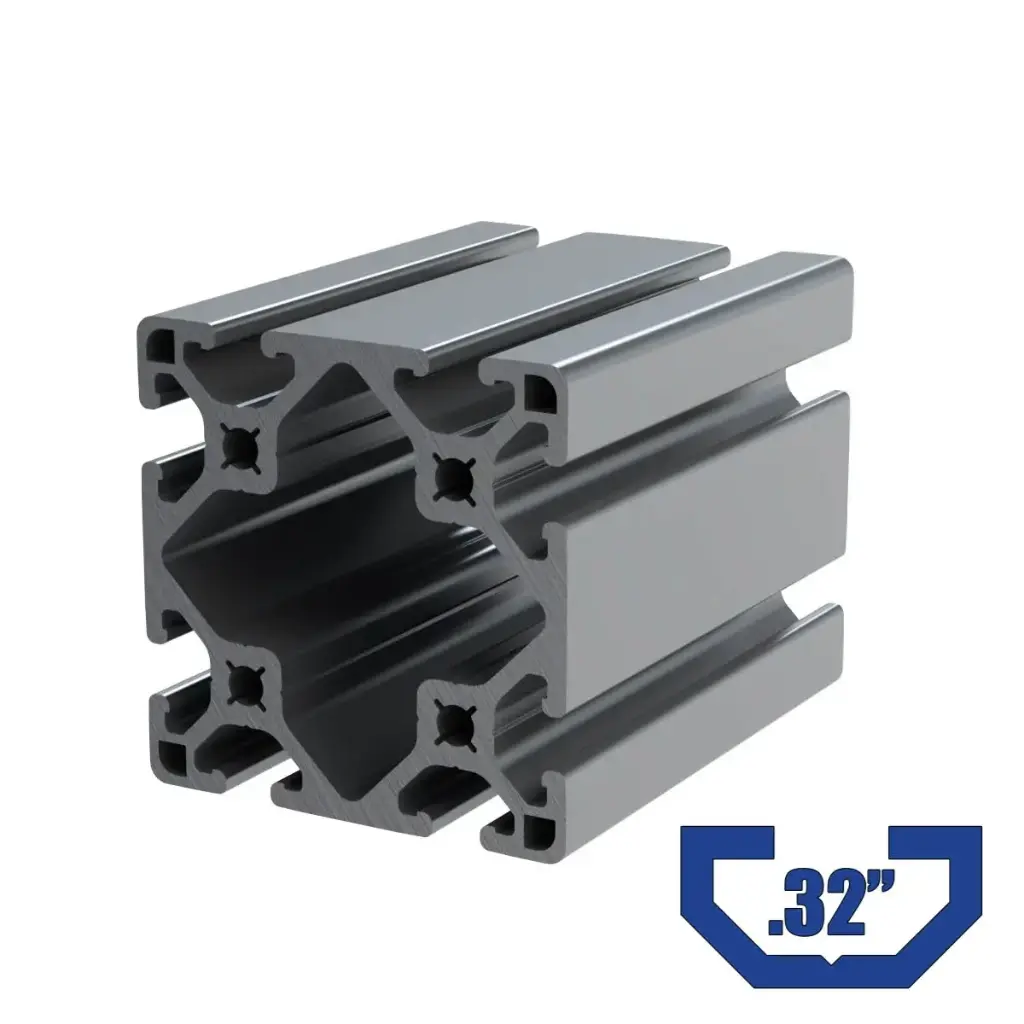

Extrusion 15 Series

Features:

Heavy duty.
Profile ideal for strong rigid frames, heavy duty workstations, base frames and machine enclosures.
Has eight 0.32 inch T-slots.
Center-bores are ready to be tapped 5/16 or M8.

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	3.1116 lbs/ft (4.631 kg/m)
Surface Area	2.659 in2
Length	240 in (20 ft) (6 meters)
Moment of Inertia	I(x)= 2.6861 in4
I(Y)= 2.6861 in4

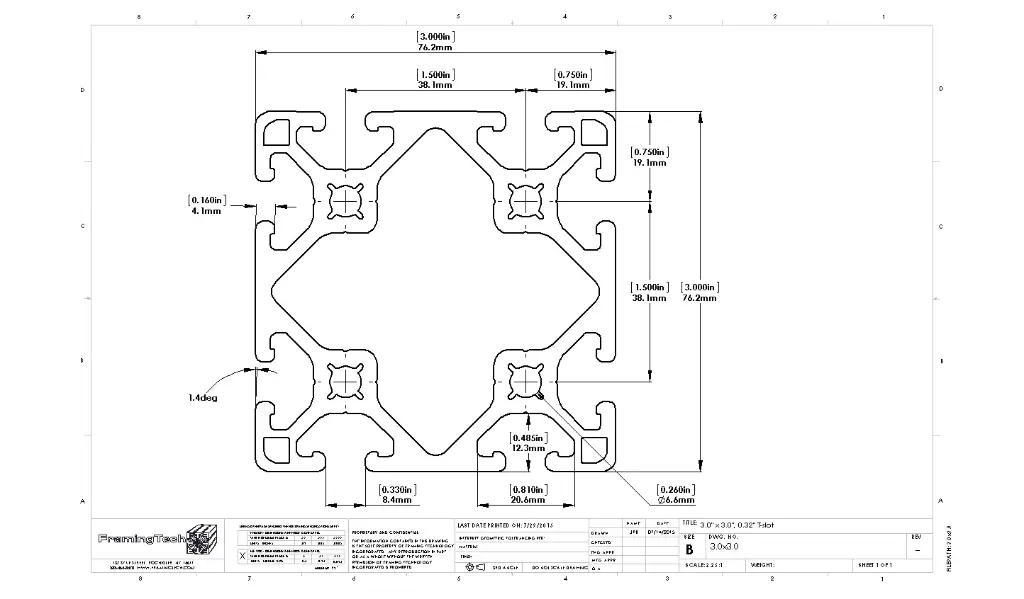

3.0x3.0.STEP
