30x30 3S-Tech.webp

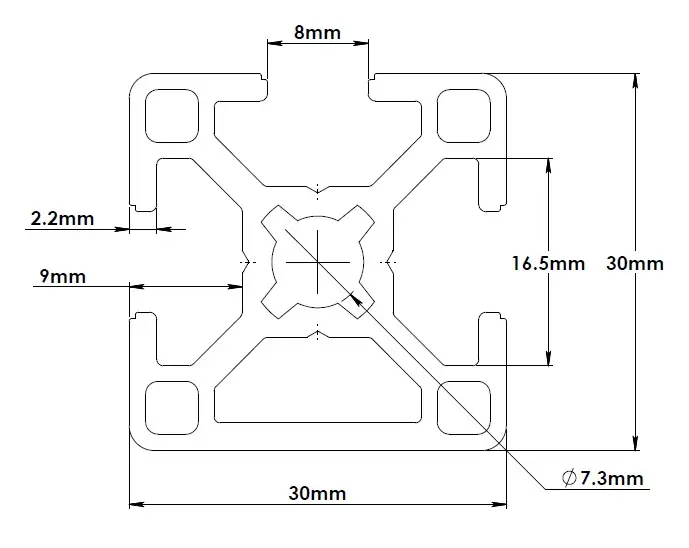

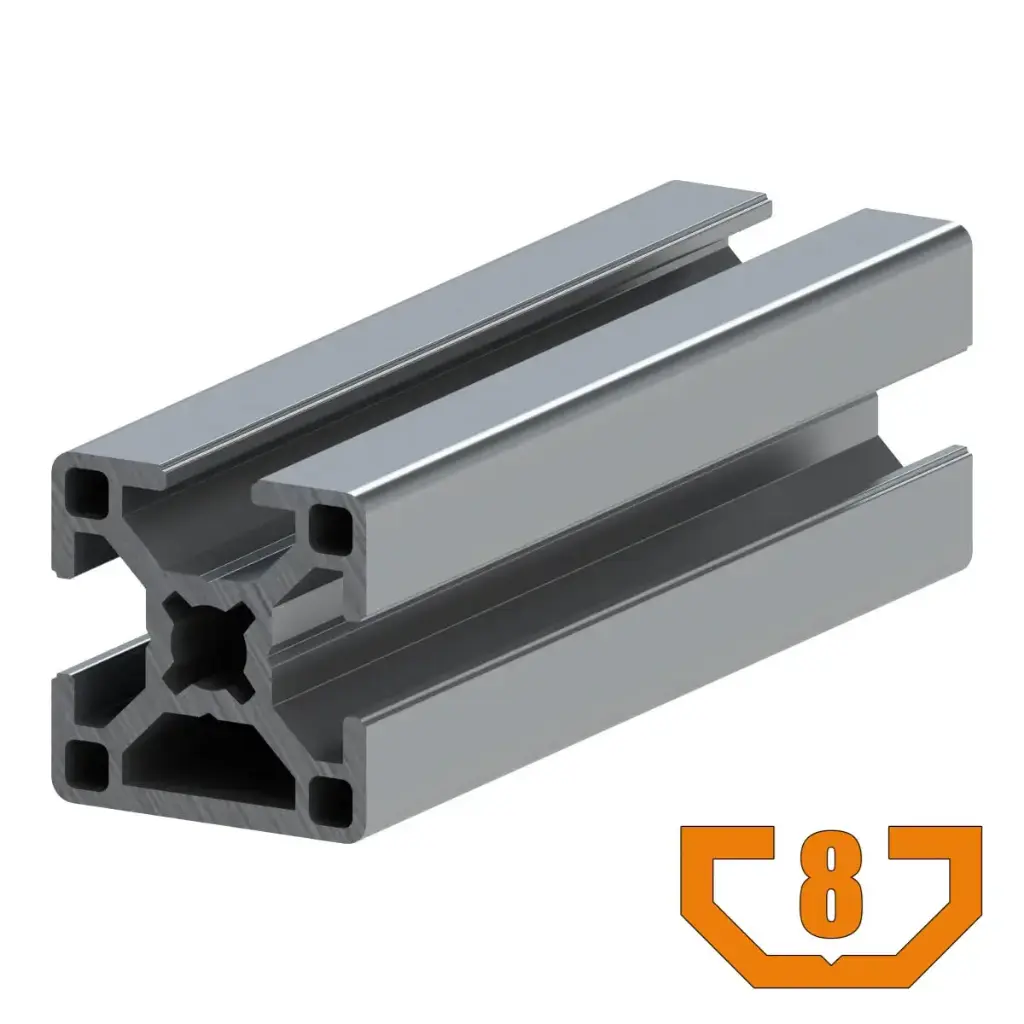

30mm x 30mm T-Slot Profile - 3 (8mm) TSlots

$ 120.00 120.0 USD $ 120.00 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

Extrusion 30 Series

Features:

Light duty
Profile ideal for small frames
Has two adjacent 8mm T-slots
Center-bore is for an M8 or 5/16-18 tap

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	0.90 kg/m (0.605 lbs/ft)
Surface Area	3.50 cm2
Length	6 meters (236 in) (19.68 ft)
Moment of Inertia	I(x)= 3.11 cm4
I(Y)= 3.11 cm4

30x30-3S.STEP
