30X60/6M

$ 165.00 165.0 USD $ 165.00 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

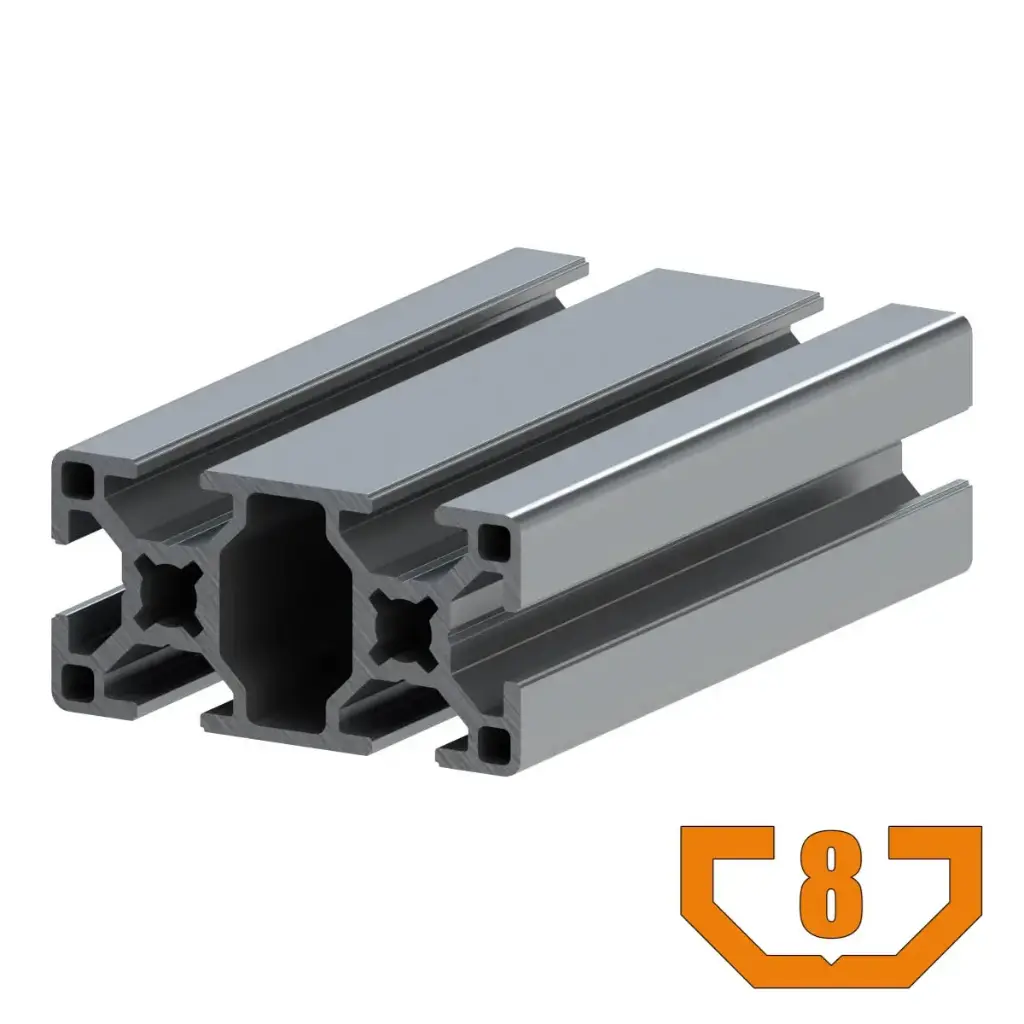

Extrusion 30 Series

Features:

Medium duty
Profile ideal for material shuttles, table frames, and machine guarding
Has six 8mm T-slots
Center-bores is for an M8 or 5/16-18 tap

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.50 kg/m (1.009 lbs/ft)
Surface Area	5.60 cm2
Length	6 meters (236 in) (19.683 ft)
Moment of Inertia	I(x)= 19.68 cm4
I(Y)= 5.06 cm4

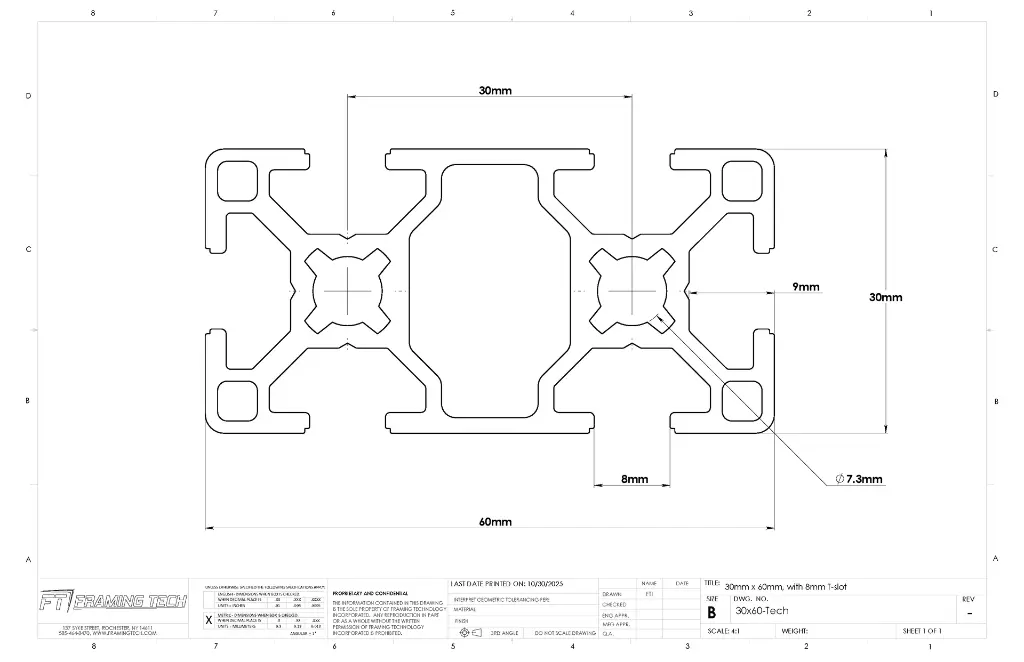

30x60.STEP
