40X40-0830DEG/6M

40X40-0830DEG/6M

$ 203.96 203.9625 USD $ 203.96 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

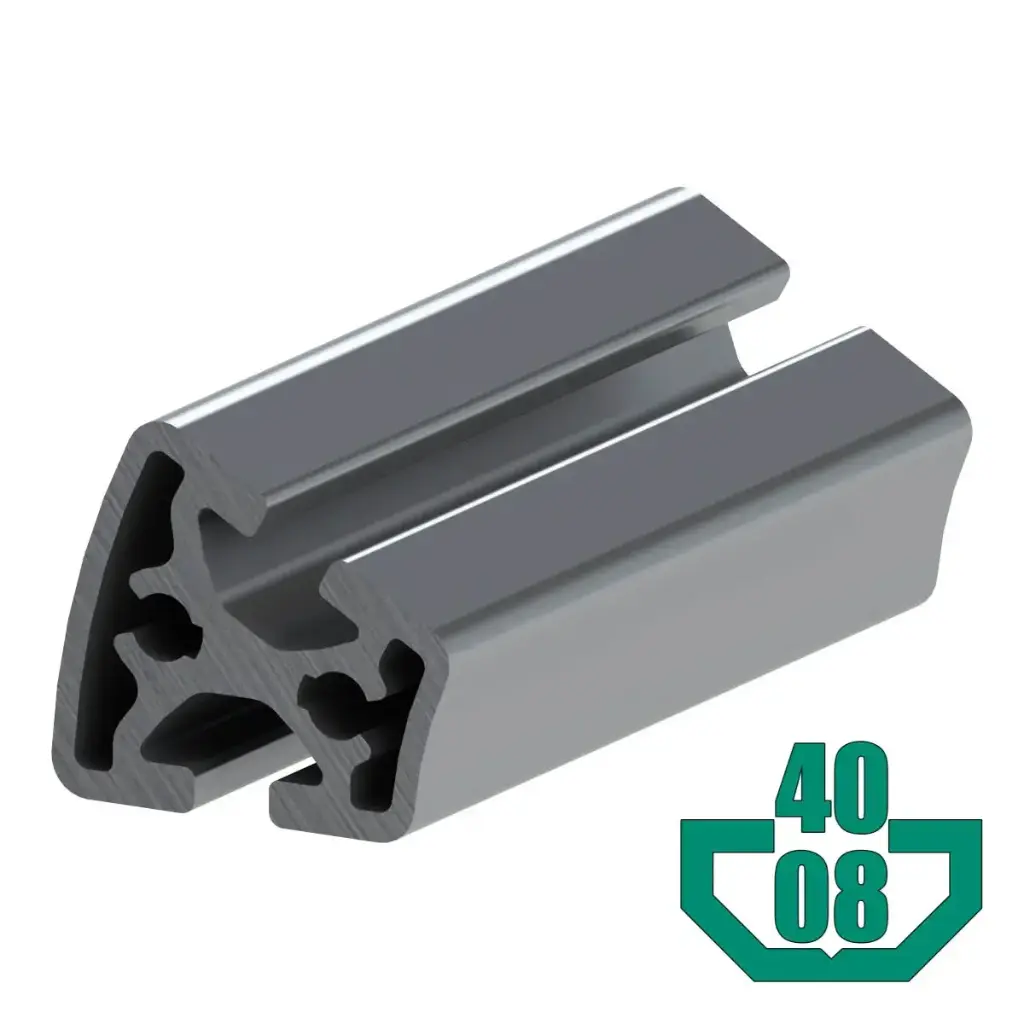

Extrusion 40 Series - 8mm T-slot

Features:

Medium duty.
Profile for frames that require a 30 degree curved section or angled projection.
Has two 8mm T-slots.
Center-bore is ready to be tapped M8 or 5/16-18.

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.68 kg/m (1.100 lbs/ft)
Surface Area	6.22 cm2
Length	6 meters (236 in) (19.69 ft)
Moment of Inertia	I(x)= 6.56 cm4
I(Y)= 8.99 cm4

40x40-08 30Deg.STEP
