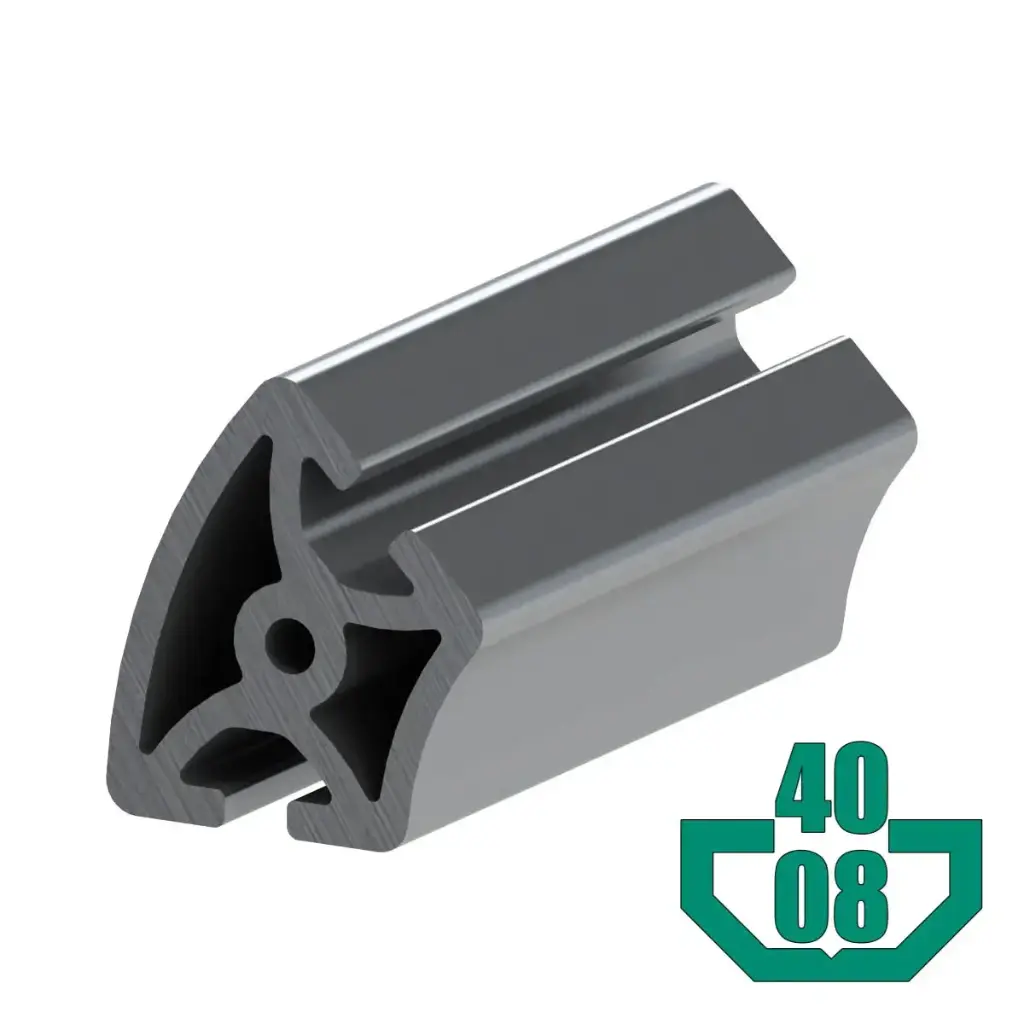

40mm x 40mm T-Slot Profile - 2 (8mm) T-Slots at 45 degrees with Smooth Inside and Outside Corners

40mm x 40mm T-Slot Profile - 2 (8mm) T-Slots at 45 degrees with Smooth Inside and Outside Corners

https://www.framingtech.com/web/image/product.template/403885/image_1920?unique=12f9d6d

$ 309.10 309.1 USD $ 309.10

Length *

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Extrusion 40 Series - 8mm T-slot
Contact Us

Share

Features:

  • Medium duty.
  • Profile for frames that require a 45 degree curved section or angled projection.
  • Has two 8mm T-slots.
  • Center-bore is ready to be tapped M8 or 5/16-18.

Technical Specifications:

Material6063-T6 Aluminum
FinishClear Anodized
Weight2.77 kg/m (1.900 lbs/ft)
Surface Area10.27 cm2
Length6 meters (236 in) (19.69 ft)
Moment of InertiaI(x)= 22.42 cm4
I(Y)= 16.68 cm4

40x40-08 45Deg.STEP
