40X40-08A45/6M

$ 181.91 181.9125 USD $ 181.91 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

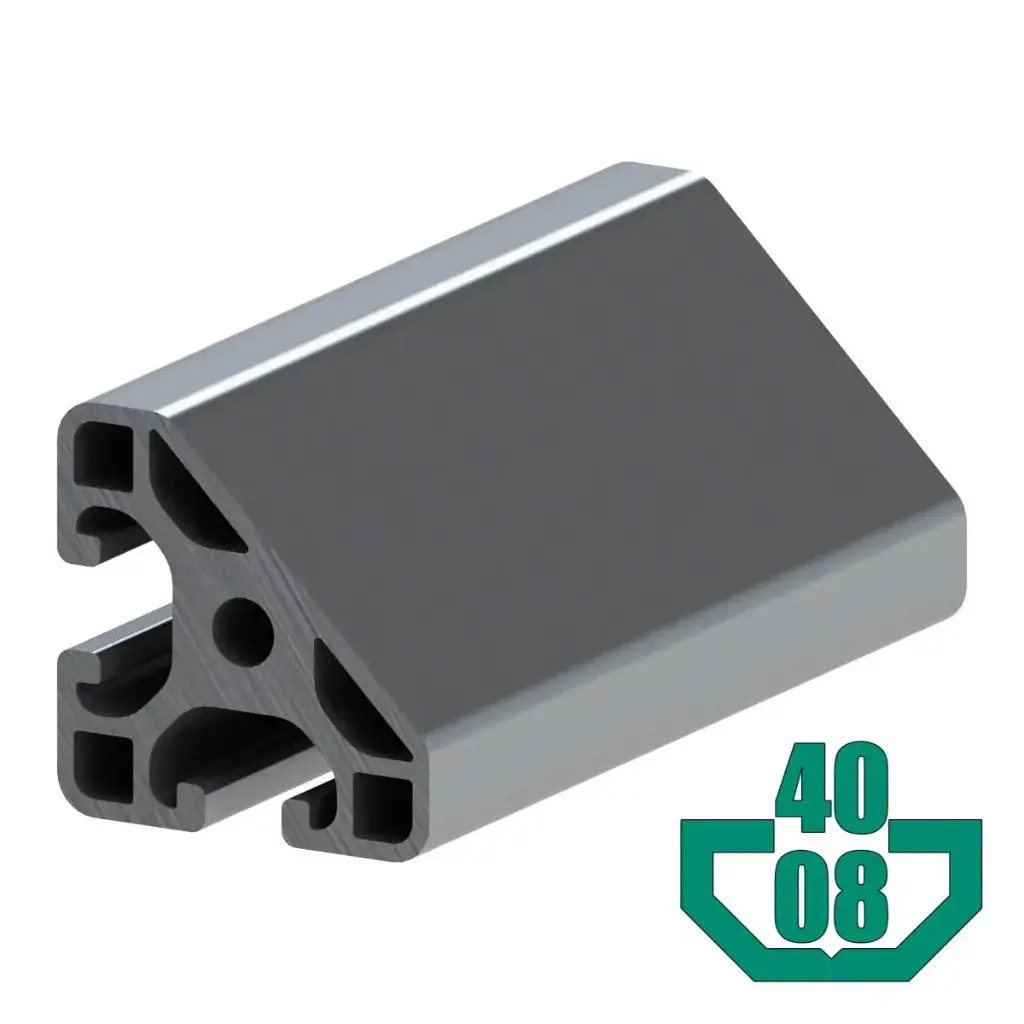

Extrusion 40 Series - 8mm T-slot

Features:

Medium duty.
Profile with a 45 degree chamfer.
Has two adjacent 8mm T-slots.
Center-bore is ready to be tapped M8 or 5/16-18.

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.51 kg/m (1.010 lbs/ft)
Surface Area	5.58 cm2
Length	6 meters (236 in) (19.69 ft)
Moment of Inertia	I(x)= 6.63 cm4
I(Y)= 6.63 cm4

40x40-08 A45.STEP
