40X40-10/6M

$ 152.25 152.25 USD $ 152.25 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

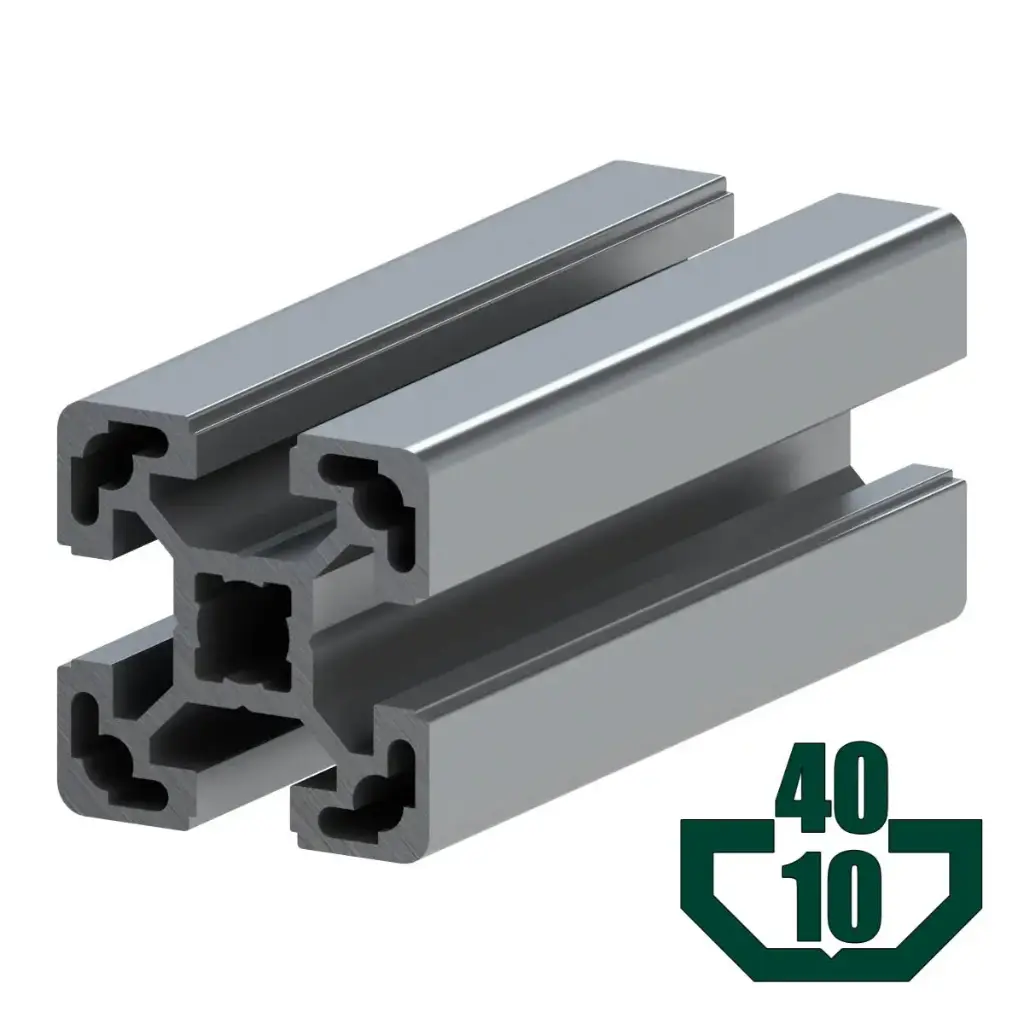

Extrusion 40 Series - 10mm T-slot

Features:

Medium duty
Profile is ideal for frames and machine guarding
Has four 10mm T-slots
Center-bore is for an M12 or 1/2-13 tap

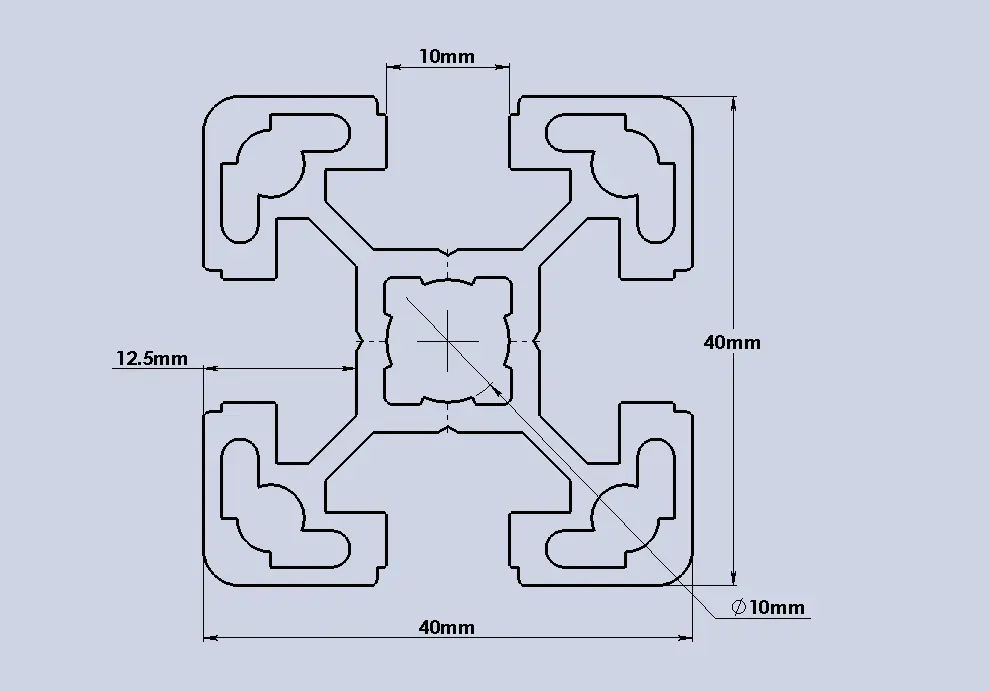

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.48 kg/m (0.995 lbs/ft)
Surface Area	5.47 cm2
Length	6 meters (236 in) (19.69 ft)
Moment of Inertia	I(x)= 8.91 cm4
I(Y)= 8.91 cm4

40x40-10.STEP
