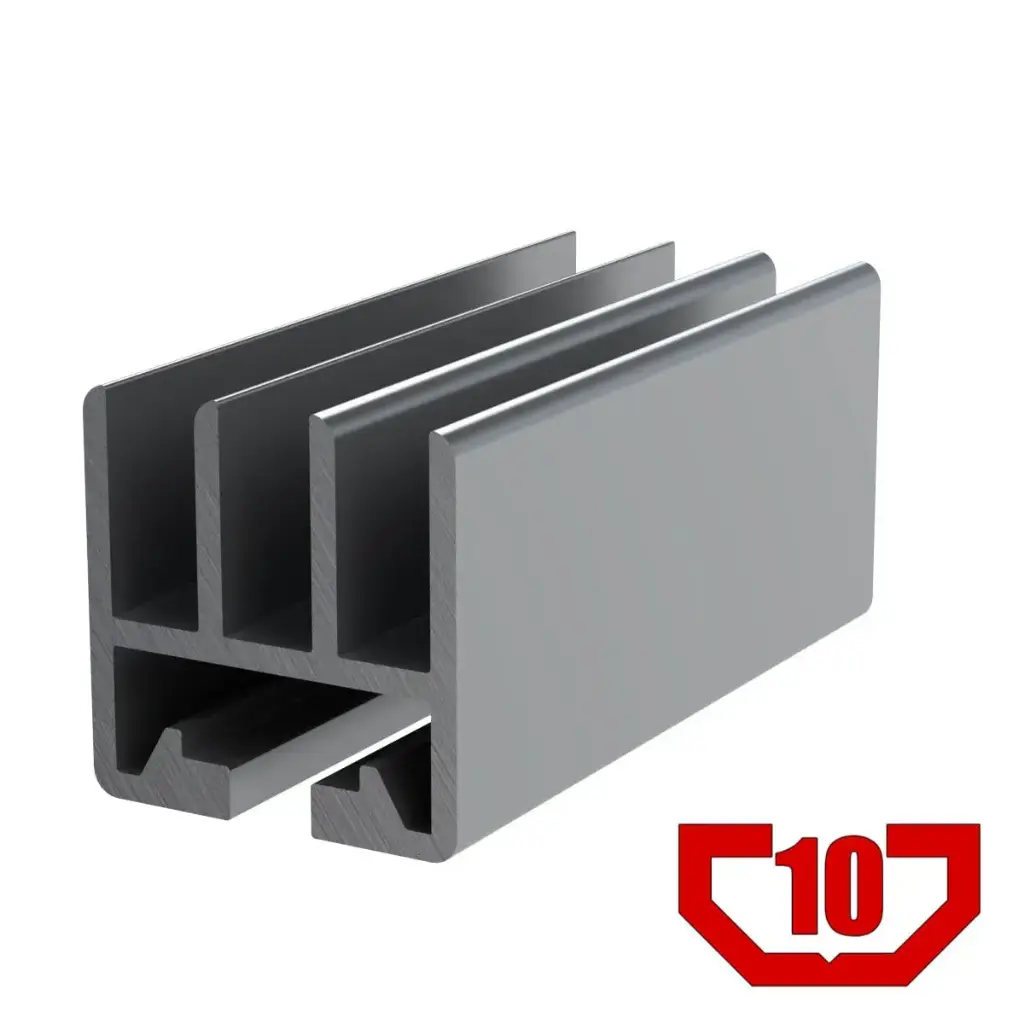

45mm x 45mm Triple Track Sliding Door Profile - 1 (10mm) TSlot

$ 226.01 226.0125 USD $ 226.01 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

Extrusion 45 Series

Features:

Profile is designed for sliding panel doors
Ideal for panel thickness from 6mm to 10mm or 1/4inch to 3/8 inch
Door can be made removable with the slide door guide insert
Has one 10mm T-slot

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	1.87 kg/m (1.258 lbs/ft)
Surface Area	6.93 cm2
Length	6 meters (236 in) (19.68 ft)
Moment of Inertia	I(x)= 16.23 cm4
I(Y)= 12.04 cm4

45x45-SD.STEP
