45X90-L/6M

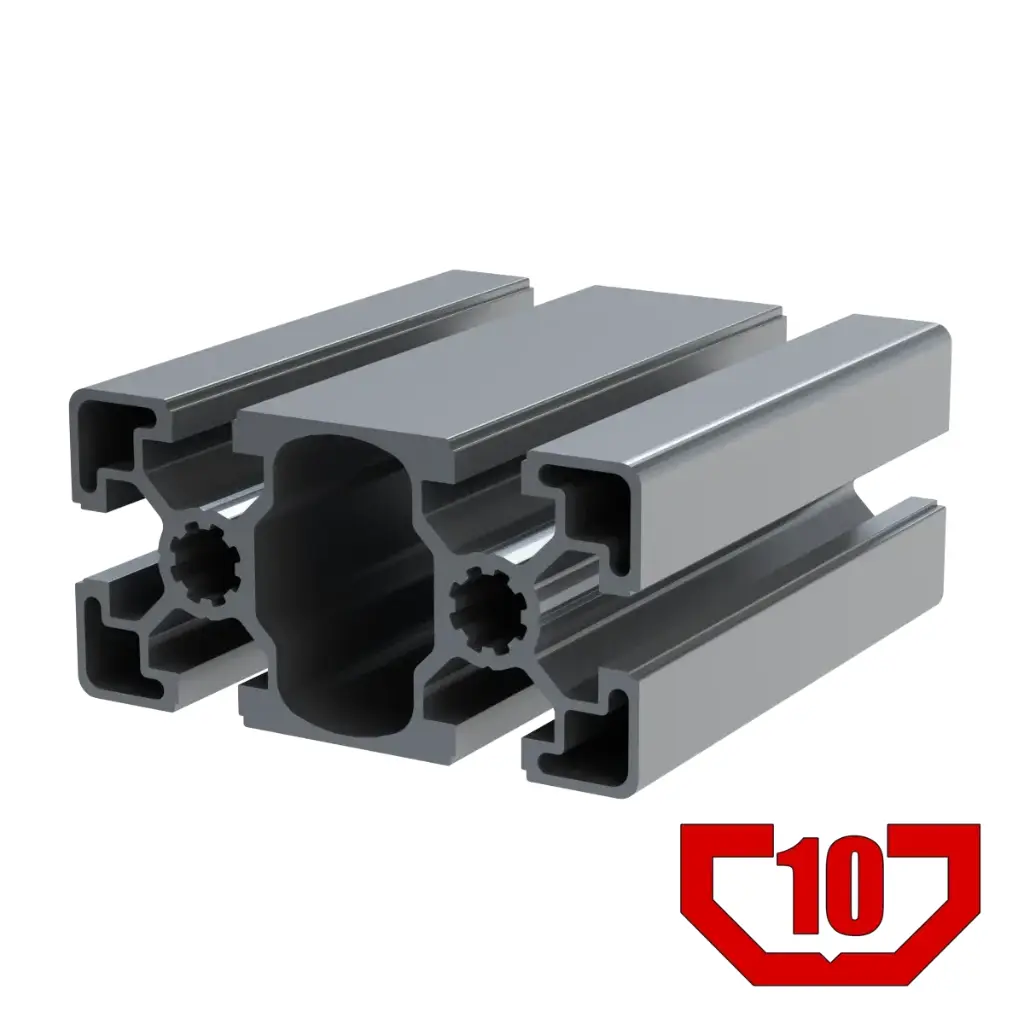

45mm x 90mm Profile, 8 T-slots, 6 meters long

$ 296.00 296.0 USD $ 296.00 0.0

Length *

Full Stick

Inch

Millimeter

This combination does not exist.

Extrusion 45 Series

Features:

Light weight medium duty
Profile ideal for material shuttles, table frames, and machine guarding
Has six 10mm T-slots
Center-bores are for an M12 or 1/2-13 taps

Technical Specifications:

Material	6063-T6 Aluminum
Finish	Clear Anodized
Weight	3.02 kg/m (2.048 lbs/ft)
Surface Area	11.17 cm2
Length	6 meters (236 in) (19.68 ft)
Moment of Inertia	I(x)= 23.19 cm4
I(Y)= 80.70 cm4

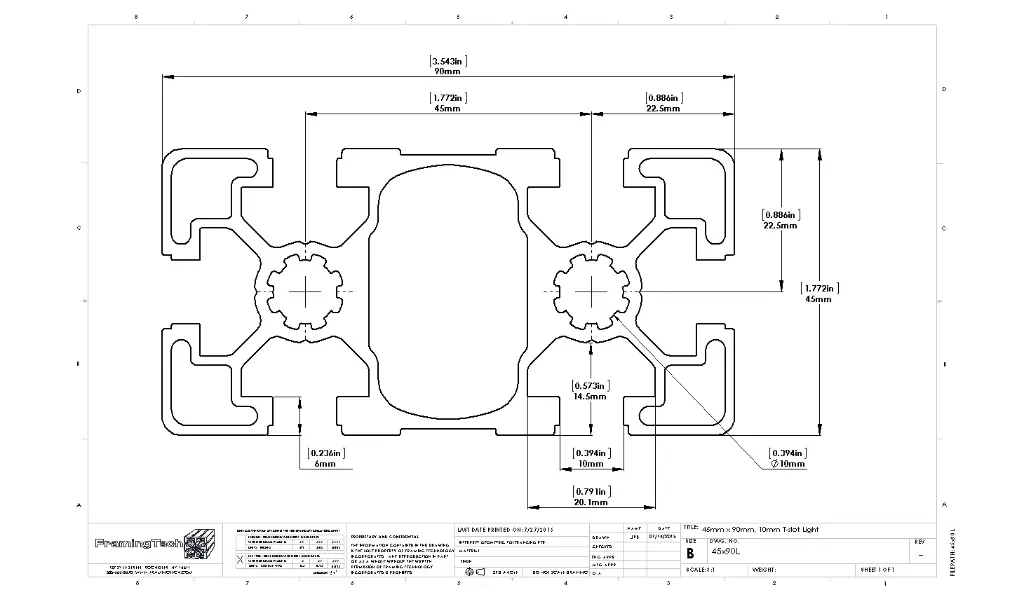

45x90L.STEP
