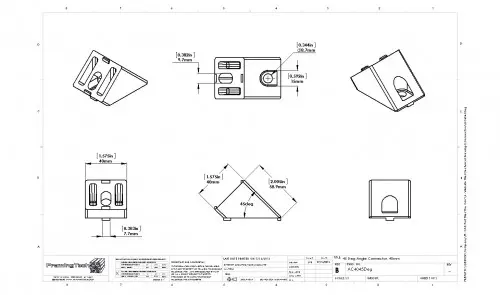

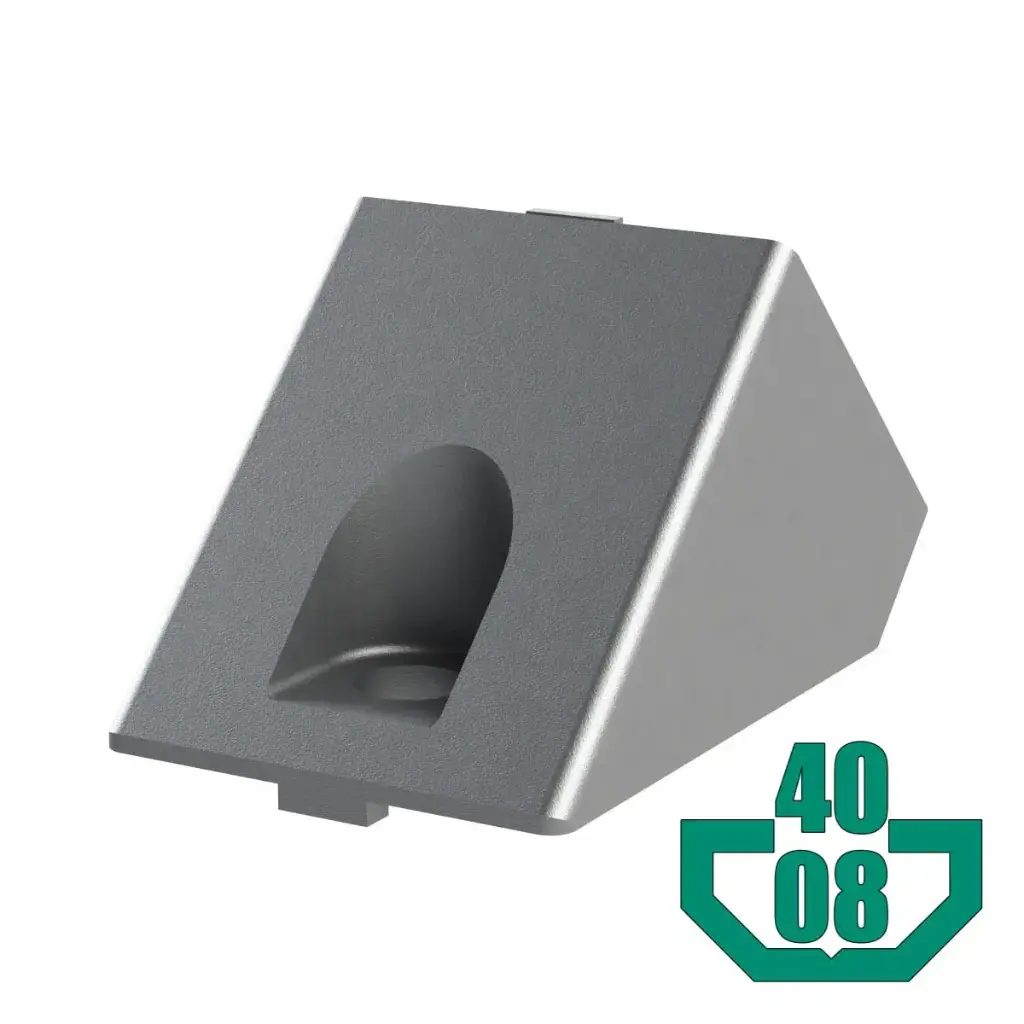

AC4045DEG

Features:

• Metric profile connector
• Allows the fastening of two pieces of strut at a 45 degree angle
• Used for 40mm by 40mm with an 08mm T-slot (just add M8 screws for mounting)
• When using with 40mm profiles having a 10mm t-slot width a TI10 thread Insert is required along with an M8 screw.
• Ideal for bracing frames when a long spans are needed

Machining Requirements:

• Mounting profile requires:
• • Tapping of the profile being used as the miter-brace (M8 typ).
  • Insert a threaded insert (TI10) for 10mm t-slot width.
• Mating profile requires:
  • No machining required (just add appropriate hardware , t-nut, screw, etc.)
