BP1.02.01/2-13

Base Plate for 1.0" x 2.0" Profile with 1/2"-13 Thread

$ 19.29 19.29375 USD $ 19.29 0.0

This combination does not exist.

Features:

Inch profile base plates
Base plates are adapters for mounting a single leveling foot onto a profile where there is no center bore for tapping
Tap profile end 1/4-20 to receive base plate mounting screws
Intended for 1.0 inch by 2.0 inch profile
Thread size is 1/2-13

Technical Specifications:

Material: Aluminum
Finish: Clear Anodized
Color: Silver

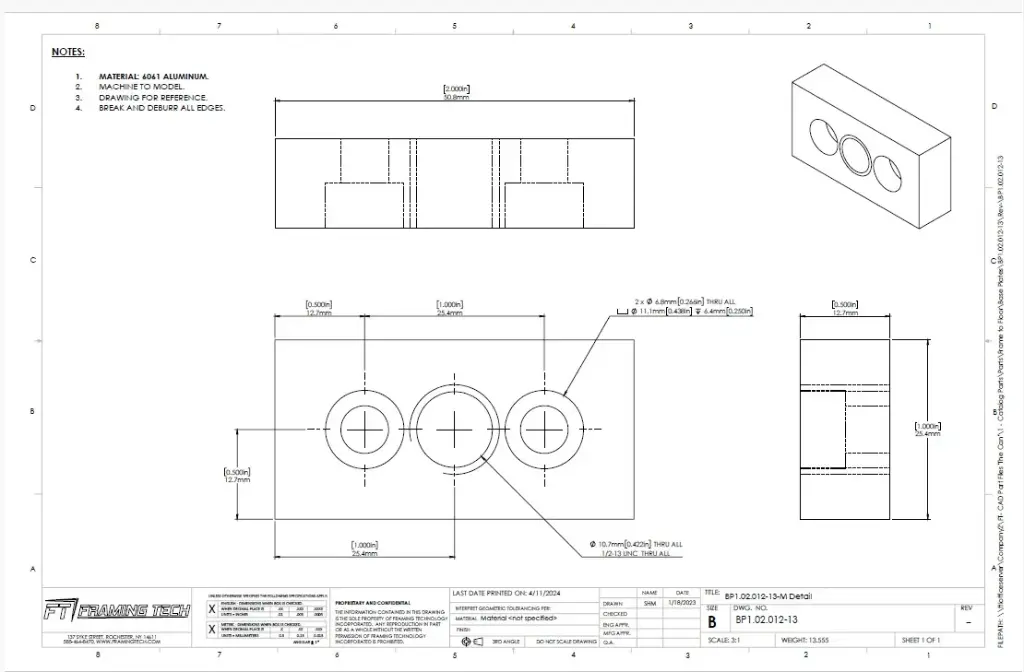

BP1.02.012-13.STEP
