BP2.02.05/16-18

BP2.02.05/16-18

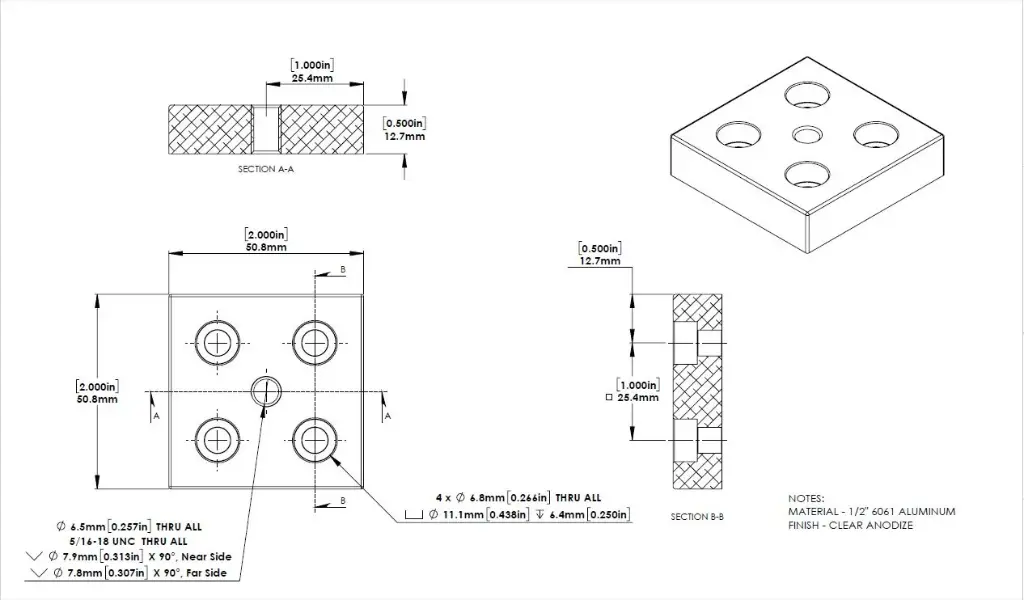

Base Plate for 2.0" x 2.0" Profile with 5/16"-18 Thread

$ 29.65 29.646225 USD $ 29.65 0.0

This combination does not exist.

Features:

Inch profile base plates
Base plates are adapters for mounting a single leveling foot onto a profile where there is no center bore for tapping
Tap profile end 1/4-20 to receive base plate mounting screws
Intended for 2.0 inch by 2.0 inch profile
Thread size is 5/16-18

Technical Specifications:

Material: Aluminum
Finish: Clear Anodized
Color: Silver

BP2.02.012-13.STEP
