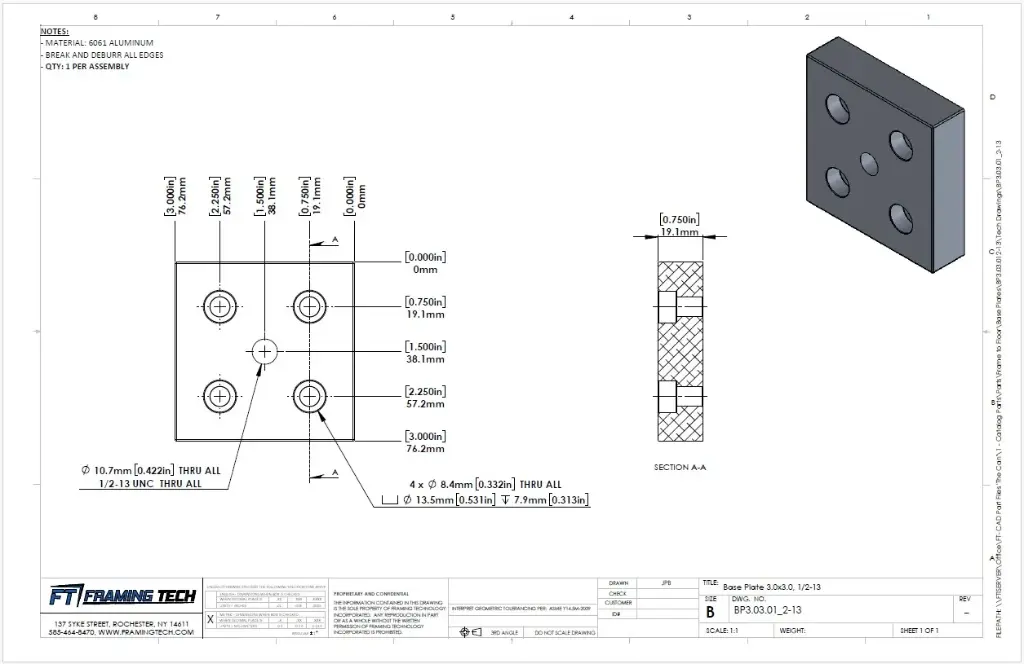

BP3.03.01/2-13

Base Plate for 3.0" x 3.0" Profile with 1/2"-13 Thread

$ 24.98 24.98 USD $ 24.98 0.0

This combination does not exist.

Features:

Inch profile base plates
Base plates are adapters for mounting a single leveling foot onto a profile where there is no center bore for tapping
Tap profile end 5/16-18 to receive base plate mounting screws
Intended for 3.0 inch by 3.0 inch profile
Thread size is 1/2-13

Technical Specifications:

Material: Aluminum
Finish: Clear Anodized
Color: Silver

BP3.03.012-13.STEP
