BP3.03.03/4-10

https://www.framingtech.com/web/image/product.template/417733/image_1920?unique=058cdc8

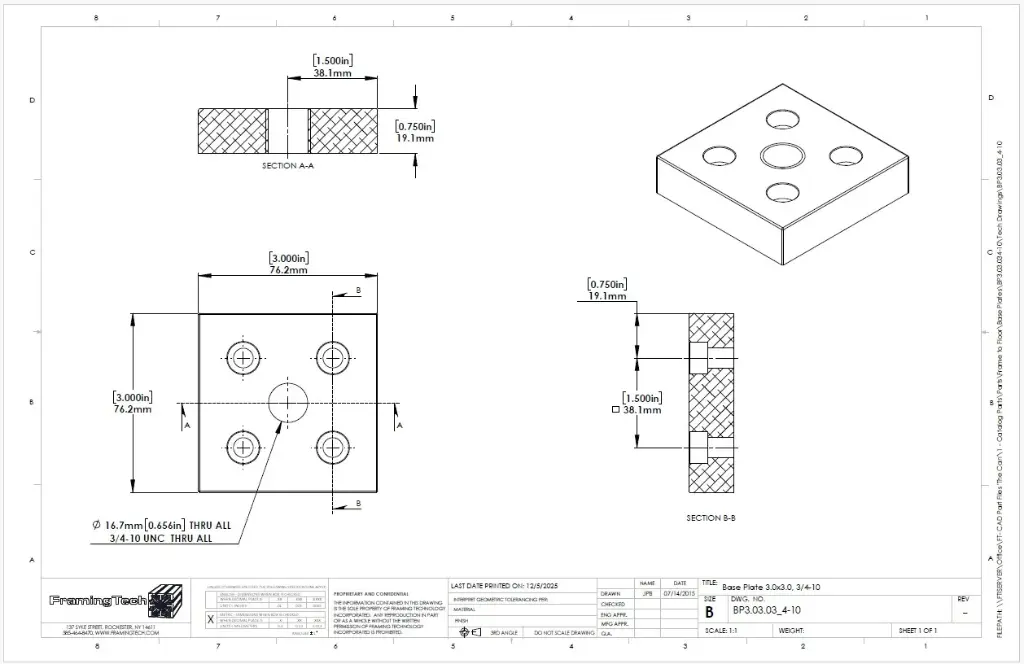

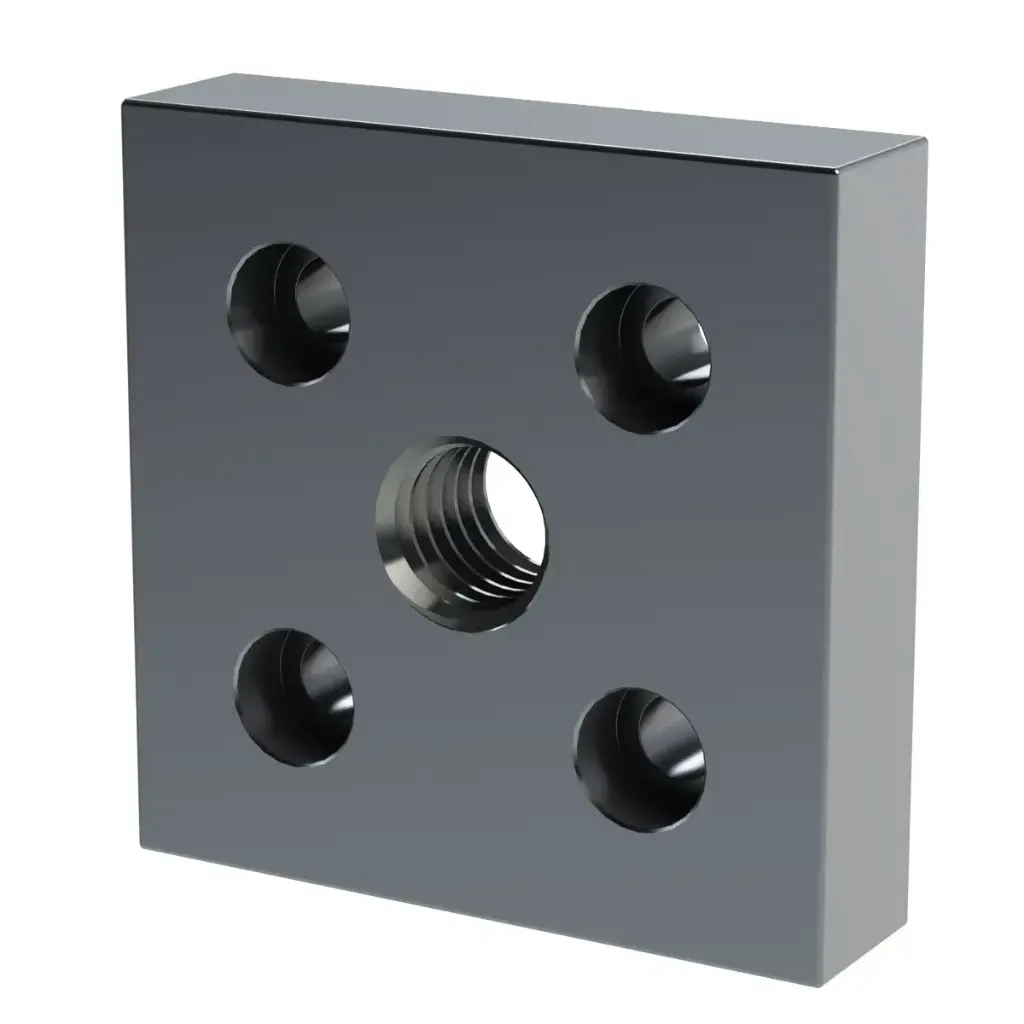

Base Plate for 3.0" x 3.0" Profile with 3/4"-10 Thread

$ 31.51 31.513333 USD $ 31.51

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Inch profile base plates
  • Base plates are adapters for mounting a single leveling foot onto a profile where there is no center bore for tapping
  • Tap profile end 5/16-18 to receive base plate mounting screws
  • Intended for 3.0 inch by 3.0 inch profile
  • Thread size is 3/4-10

Technical Specifications:

  • Material: Aluminum
  • Finish: Clear Anodized
  • Color: Silver
BP3.03.034-10.STEP
