BP4080-10M16

Base Plate for 40x80 10mm T-slot with a M16 Thread

$ 15.13 15.1263 USD $ 15.13 0.0

This combination does not exist.

Features:

Metric profile base plates
Base plates are adapters for mounting a single leveling foot onto a profile where there is no center bore for tapping
Tap profile end M12 x 1.75 for base plate mounting screws
Intended for 40mm x 80mm profiles with a 10mm T-slot
Thread size is M16 x 1.5

Technical Specifications:

Material: Aluminum
Finish: Clear Anodized
Color: Silver

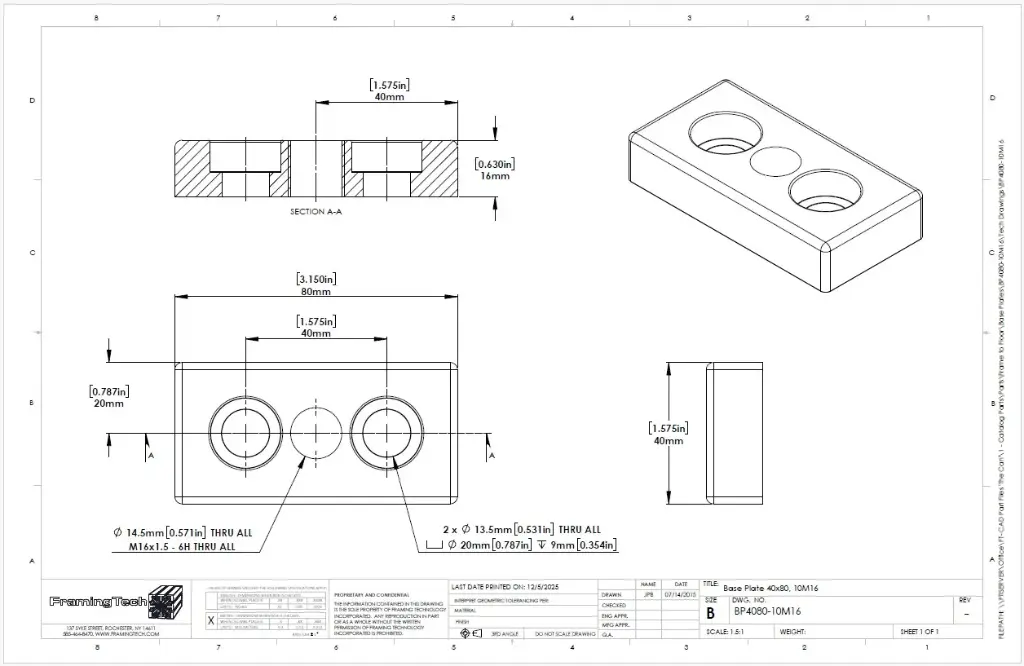

BP4080-10M16.STEP
