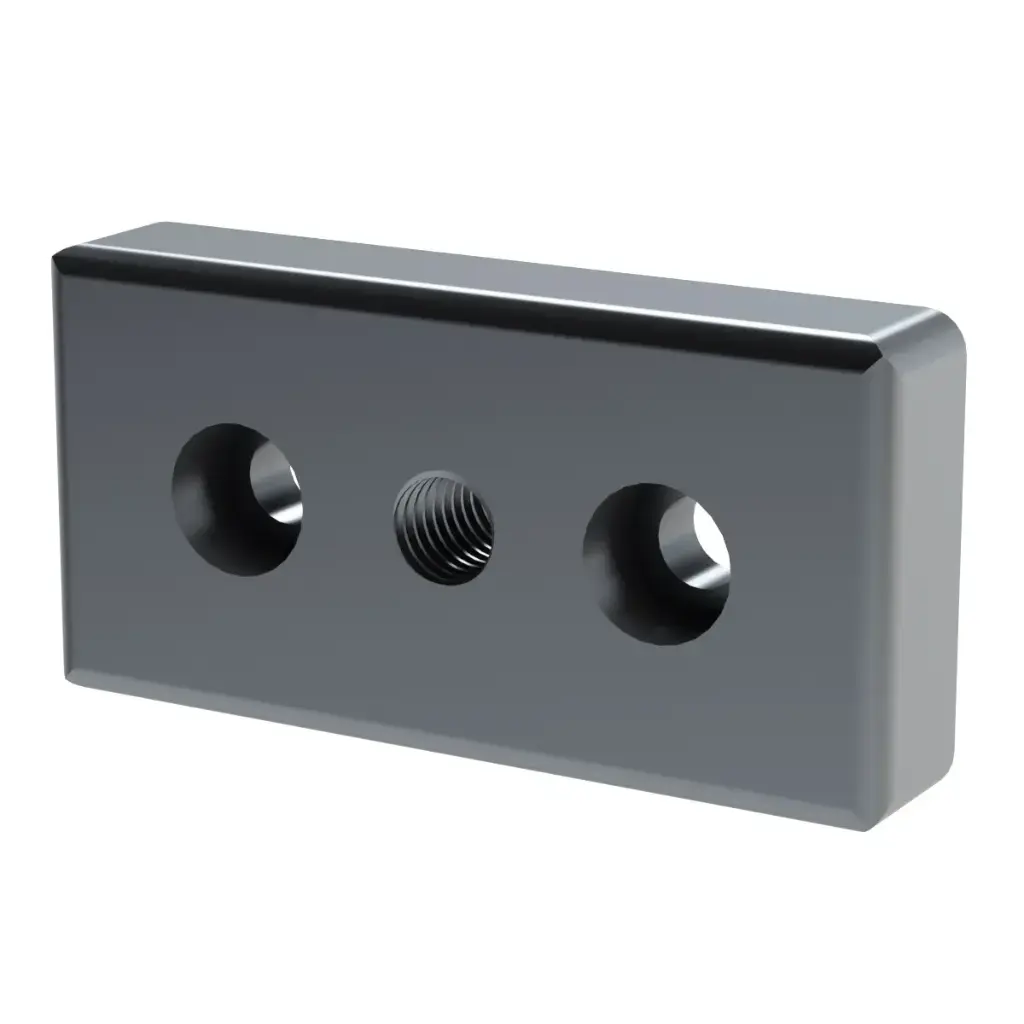

BP4590SM

Base-plate (side-mount) M12 Thread, M8 holes

$ 19.75 19.745775 USD $ 19.75 0.0

This combination does not exist.

Features:

Intended for use with 45 series profiles
Base plates are adapters for mounting a single leveling foot onto a profile
Requires 2x M8 socket head screws and t-nuts to mount to a 10mm t-slot
Thread size is M12 x 1.75
Drill clearance hole in profile to prevent conflict with threaded stem

Technical Specifications:

Material: Die Cast Zinc
Finish: Clear Zinc
Color: Silver

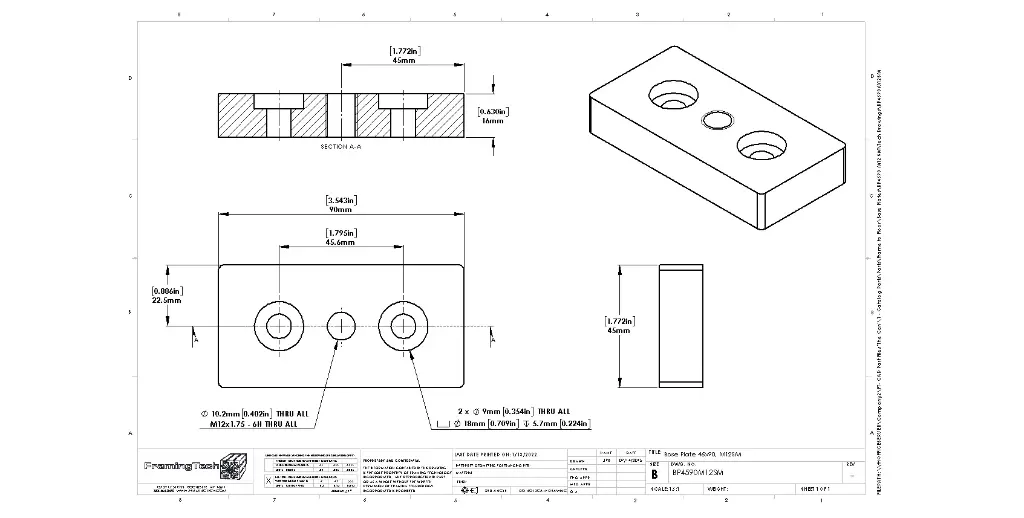

BP4590M12SM.STEP
