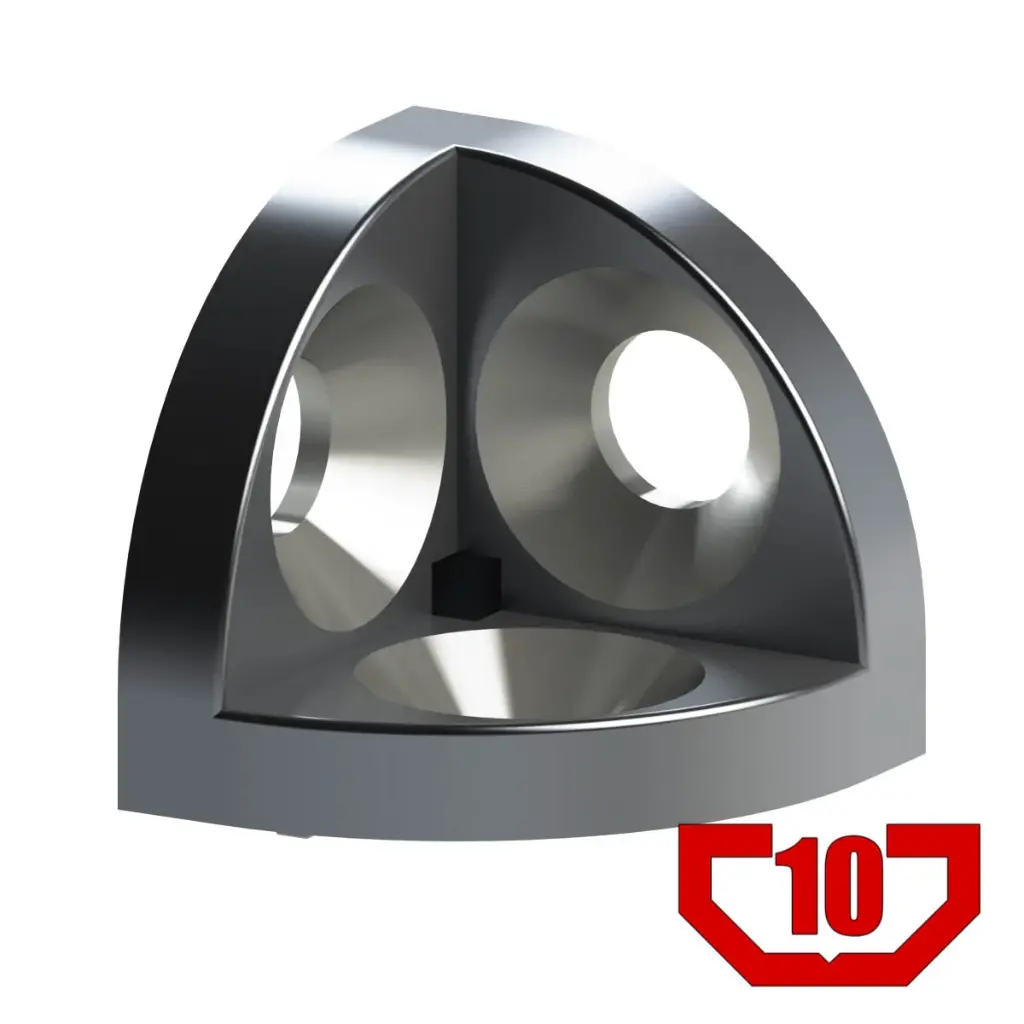

CBR1045

Features:

• Metric profile connector
• Allows the fastening of three pieces of strut at 90 degree angles
• Used for 45mm with 10mm T-slot profiles
• Brackets are mounted into center-bores of profiles and capped
• Caps are cubed or radius for a clean look
• Ideal for connecting radius profiles together

Machining Requirements:

• Mounting profile requires:
  • Tap profile's center-bore for a M12 thread
• Mating profiles require:
  • Tap profile's center-bore for a M12 thread

Tools Required:

• 8mm Hex wrench (Allen Key)
