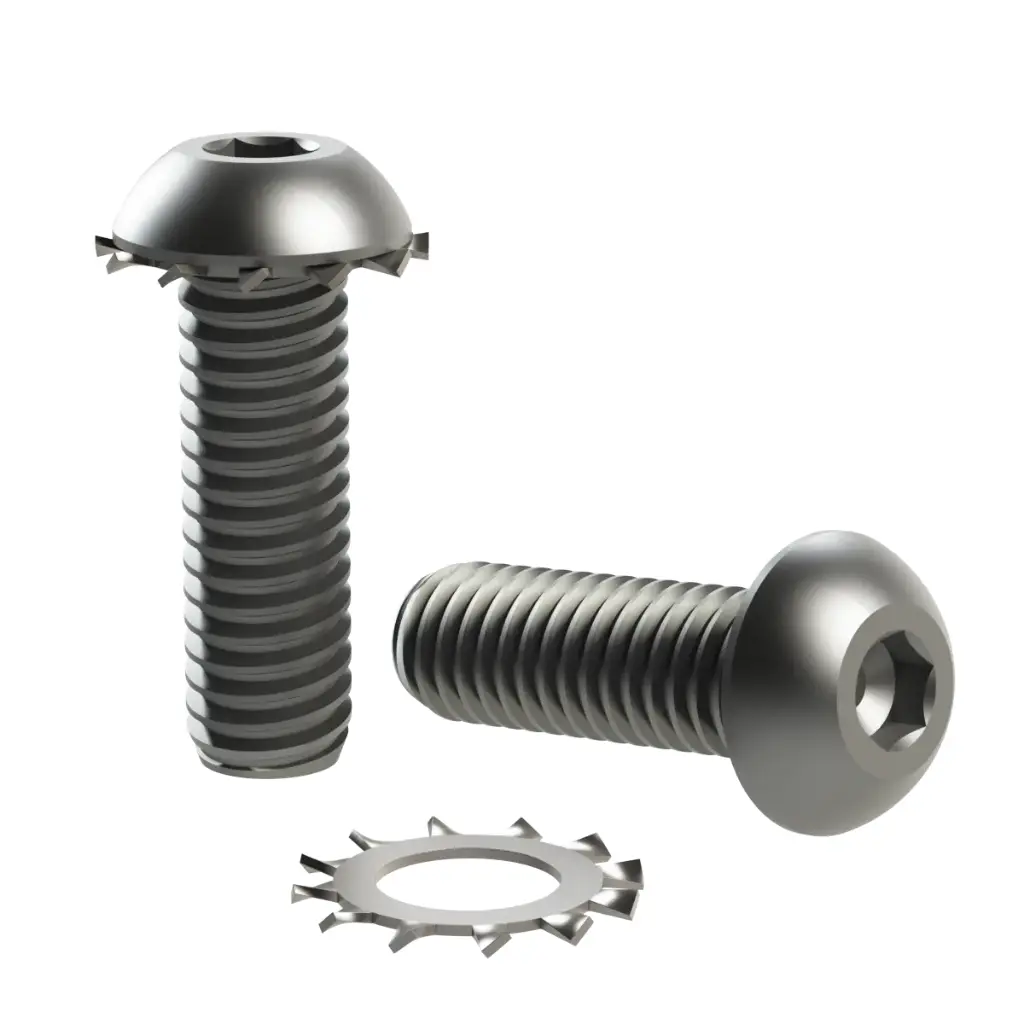

CS08516HEX

Features:

• Inch profile connector
• Inexpensive connection method for T-slot profiles
• Star washer grips into profile for a strong connection

Machining Requirements:

• Mounting profile requires:
  • Center-bore of connecting profile needs to be tapped for a 5/16"-18
• Mating profile requires:
  • Drill 1/4" access hole for hex wrench to tighten connection screw

Tools Required:

• 3/16" Hex wrench (Allen Key)
