CS08M8HEX

https://www.framingtech.com/web/image/product.template/427292/image_1920?unique=a397134

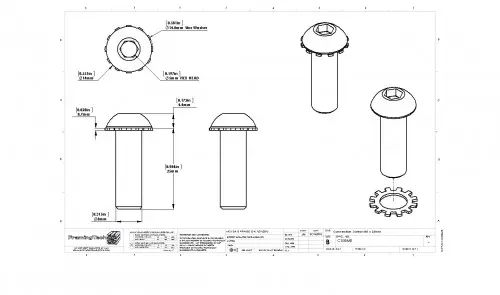

Connection Screw for 8slot, M8 x 25mm

$ 2.31 2.312628 USD $ 2.31

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile connector
  • Inexpensive connection method for T-slot profiles
  • Star washer grips into profile for a strong connection

Machining Requirements:

  • Mounting profile requires:
    • Center-bore of connecting profile needs to be tapped for a M8
  • Mating profile requires:
    • Drill 6mm access hole for hex wrench to tighten connection screw

Tools Required:

  • 5mm Hex wrench (Allen Key)
