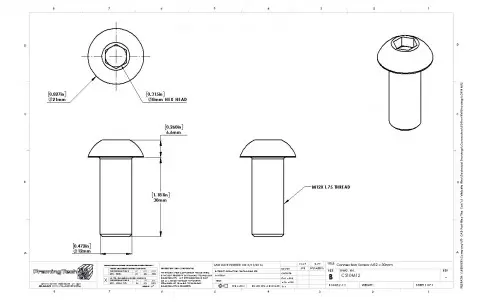

CS10M12HEX

Features:

• Metric profile connector
• Inexpensive connection method for T-slot profiles
• Grips into profile end for a strong connection

Machining Requirements:

• Mounting profile requires:
  • Center-bore of connecting profile needs to be tapped for a M12x1.75 thread
• Mating profile requires:
  • Drill 0.397" access hole for hex wrench insertion - Use 'X' drill bit.

Tools Required:

• 8mm Hex wrench (Allen Key)
