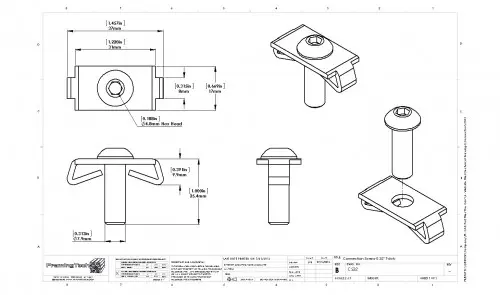

CS325/16-18HEX

Features:

• Inch profile connector
• Inexpensive connection method for T-slot profiles
• Alignment or "Butterfly" clip prevents rotation of profile connection

Machining Requirements:

• Mounting profile requires:
  • Center-bore of connecting profile needs to be tapped for a 5/16-18
• Mating profile requires:
  • Drill 0.295" (M drill bit) access hole for hex wrench to tighten connection screw

Tools Required:

• 3/16" Hex wrench (Allen Key)
