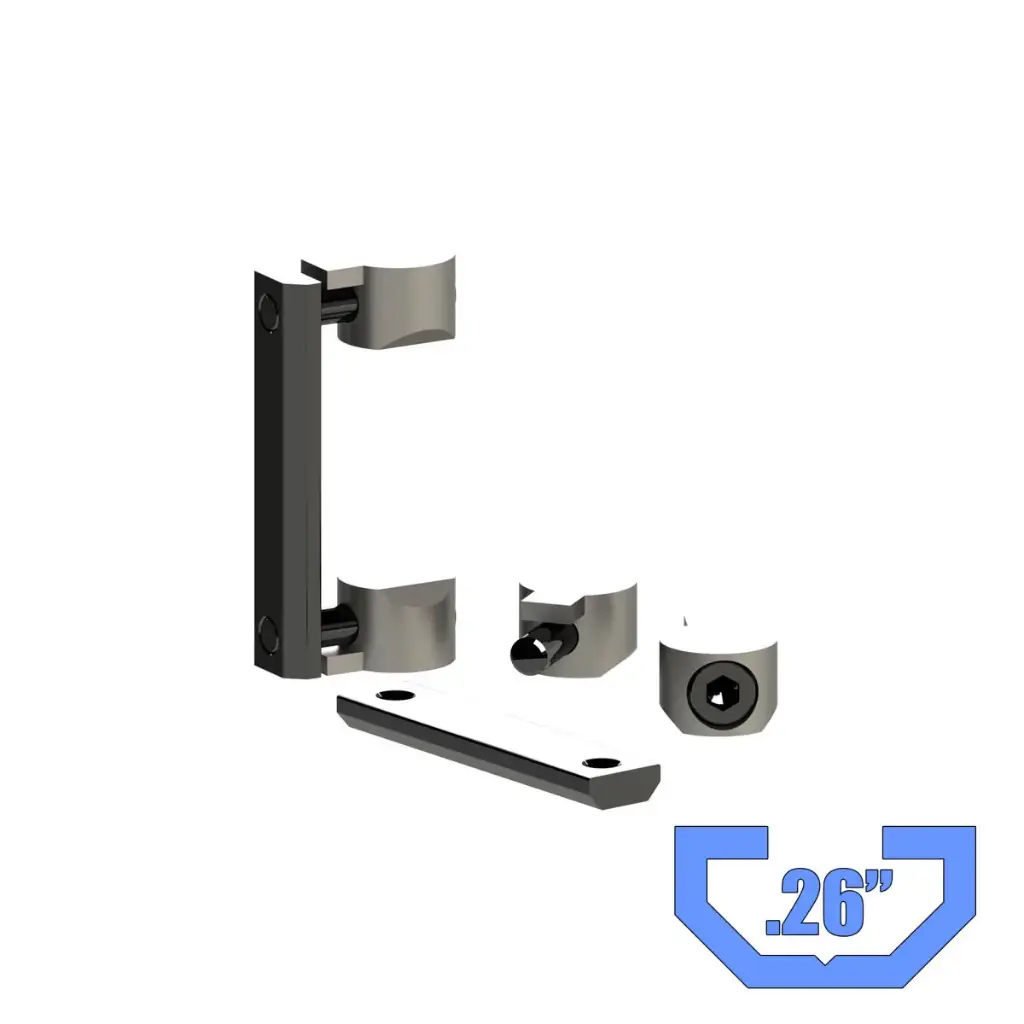

DUF26-Long

Features:

• Inch profile connector
• Connects a 0.26 inch T-slot profile to a 0.26 inch T-slot profile
• Referred to as a double "Banjo" or an "Anchor" style connector
• Versatile connector allowing adjustability while providing a high strength connection

Machining Requirements:

• Universal fastener placement:
  • Mill a 9/16" hole, 7/16" deep, on opposite sides on profile
  • 13/32" away from profile end

Tools Required:

• 5/32" Hex wrench (Allen Key)
