LF100DBM12100

Features:

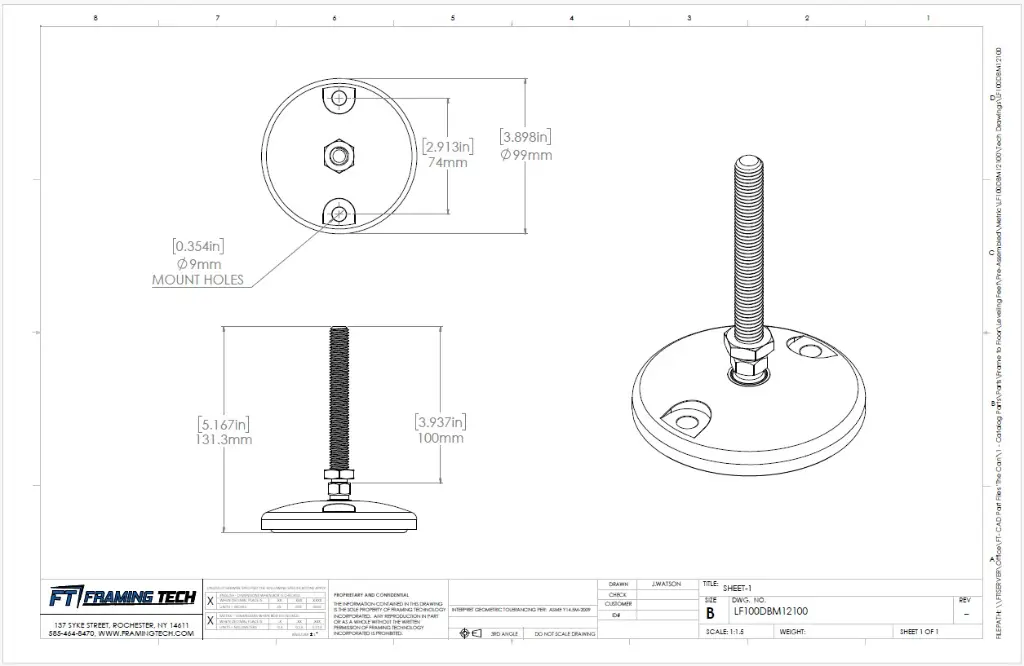

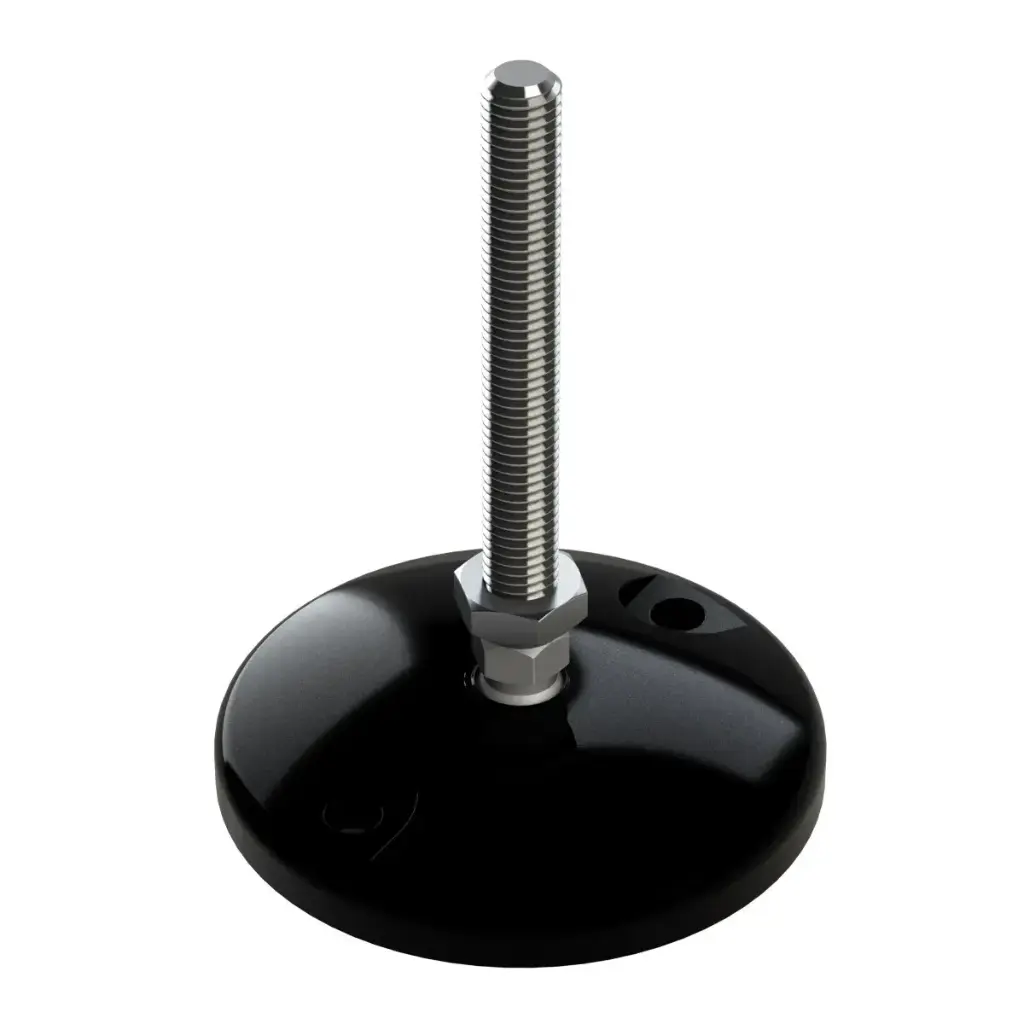

• Leveling Foot with a 100mm die-cast zinc base with an anti-slip pad.
• Base has two 9mm anchor holes.
• Thread stud is a M12 with a 1.75 pitch x 100mm long.
• Installs by threading stud into pre-tapped strut end, and with a soft-face mallet tap the base plate onto the stud.
• A jam nut is provided for locking leveling foot at a specified height.

Technical Specifications:

• Material: Die-cast Zinc
• Finish: Powder Coated
• Color: Black
