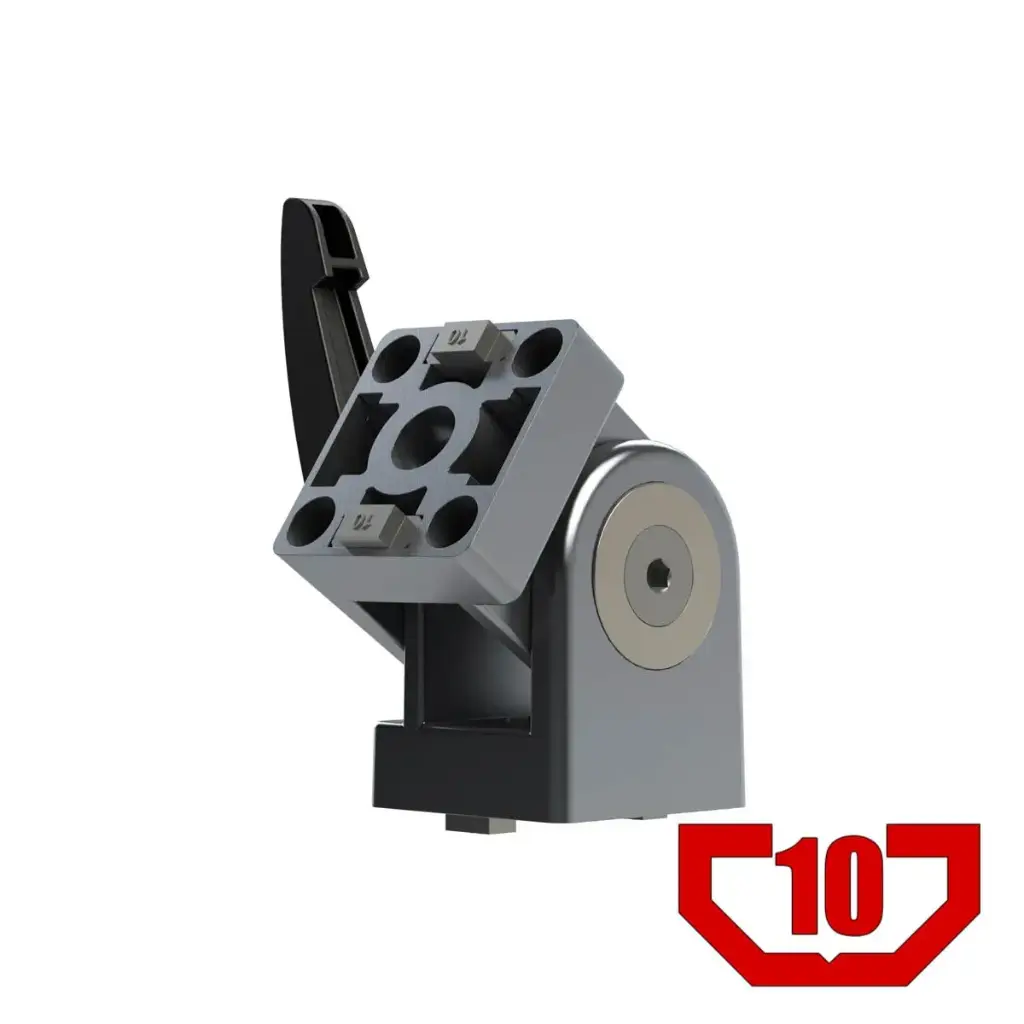

PJ1045M12WH

Features:

• Metric profile connector - typically "End-to -End"
• Used for 45mm with an 10mm T-slot series profiles
• Allows the fastening of two pieces of strut at a various angles - 182° DoF
• Handle allows for locking desired position
• There is one type of mounting hardware (Hardware Sold Separately):
  • "End-to-End" - Pivot Joint mounts to the tapped ends of two profiles.

Machining Requirements:

• Mounting profile requires:
  • Tap one end of the profile for a M12
• Mating profile requires:
  • Tap one end of the profile for a M12

Hardware Needed:

• "End-to-End":
  • (2) M12 x 30mm Socket Head Cap Screw

Tools Required:

• 8mm Hex wrench (Allen Key)
