PJ20

PJ20

https://www.framingtech.com/web/image/product.template/471139/image_1920?unique=b38154c

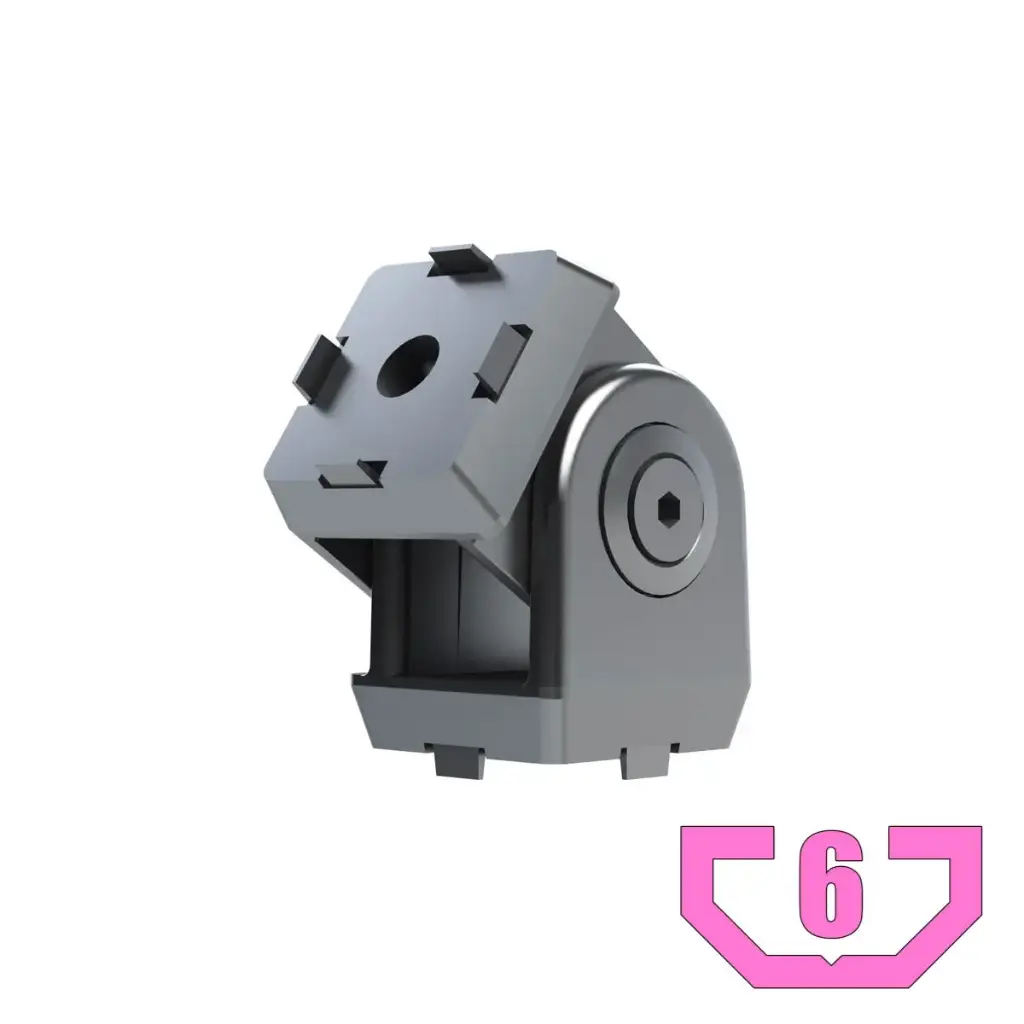

Pivot Joint, 20mm profiles, 05mm or 06mm t-slot width.

$ 19.75 19.75 USD $ 19.75

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile connector
  • Used for 20 Series Profiles with a 6mm T-slot
  • Allows the fastening of two pieces of strut at a various angles - 182° DoF
  • There are three types of mounting hardware (Hardware Sold Separately):
    • "End-to-End" - Pivot Joint mounts to the ends of two connecting profiles.
    • "End-to-Side" - Pivot Joint mounts to the end of first profile and mounts to the side (T-slot) on the second profile
    • "Side-to-Side" - Pivot Joint mounts to the sides (T-slots) of the connecting profiles

Machining Requirements:

  • Mounting profile requires:
    • "End-to-End - Tap M6
    • "Side-to-Side" - No machining required
  • Mating profile requires:
    • "End-to-End - Tap M6
    • "Side-to-Side" - No machining required
