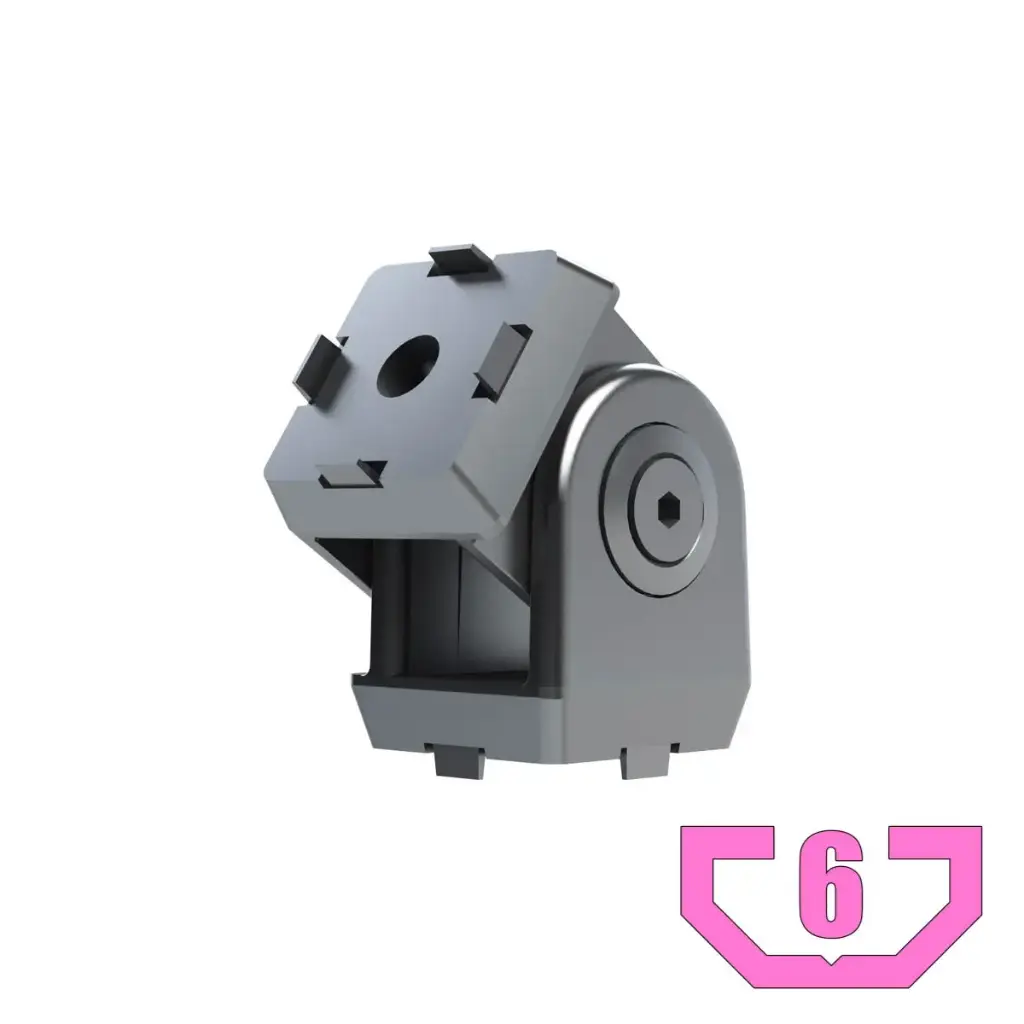

PJ20

Features:

• Metric profile connector
• Used for 20 Series Profiles with a 6mm T-slot
• Allows the fastening of two pieces of strut at a various angles - 182° DoF
• There are three types of mounting hardware (Hardware Sold Separately):
  • "End-to-End" - Pivot Joint mounts to the ends of two connecting profiles.
  • "End-to-Side" - Pivot Joint mounts to the end of first profile and mounts to the side (T-slot) on the second profile
  • "Side-to-Side" - Pivot Joint mounts to the sides (T-slots) of the connecting profiles

Machining Requirements:

• Mounting profile requires:
  • "End-to-End - Tap M6
  • "Side-to-Side" - No machining required
• Mating profile requires:
  • "End-to-End - Tap M6
  • "Side-to-Side" - No machining required
