QC10V

https://www.framingtech.com/web/image/product.template/472427/image_1920?unique=b78a26f

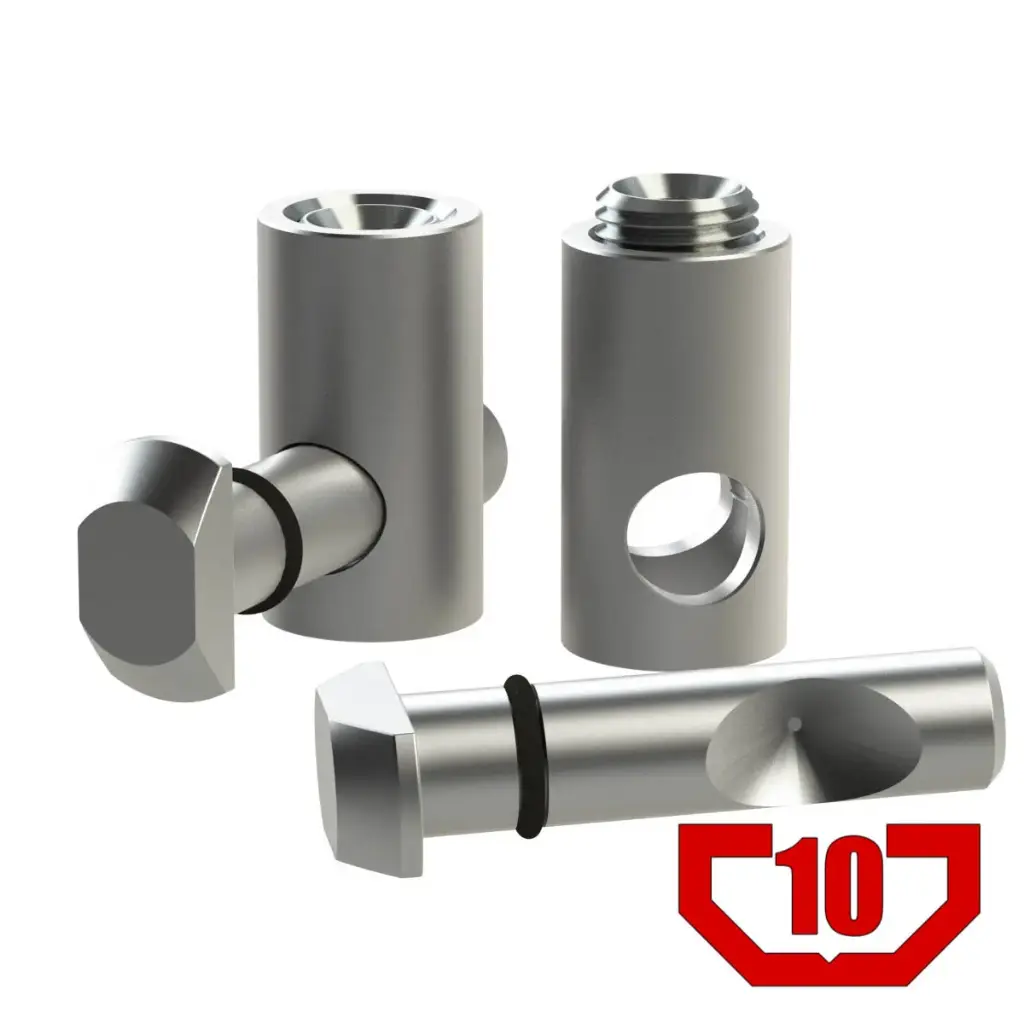

Quick Connector for 10mm T-slot, Vertical Access

$ 4.65 4.65 USD $ 4.65

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

45 Series
Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile connector
  • Connects a 10mm T-slot profile to a 10mm T-slot profile
  • Versatile connector allowing adjustability while providing a high strength connection

Machining Requirements:

  • Quick connector placement:
    • Drill an 17mm hole 32mm deep
    • 22.5mm away from profile end

Tools Required:

  • 6mm Hex wrench (Allen Key)

Technical Specifications:

MaterialSteel
FinishZinc Plated
ColorSilver
Weight56 g
Shear Force899 lbs (4000 N)
Moment Force1239 lbs-in (140 Nm)
