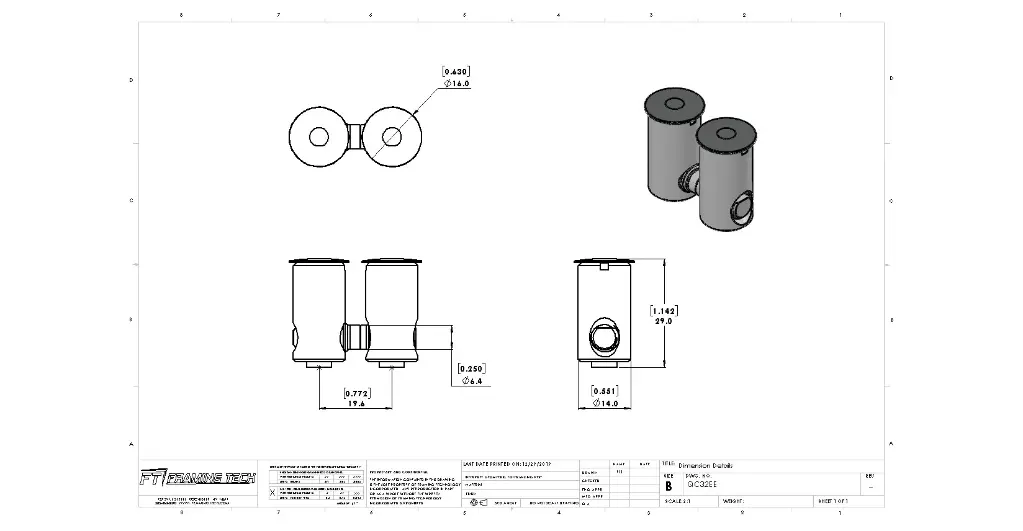

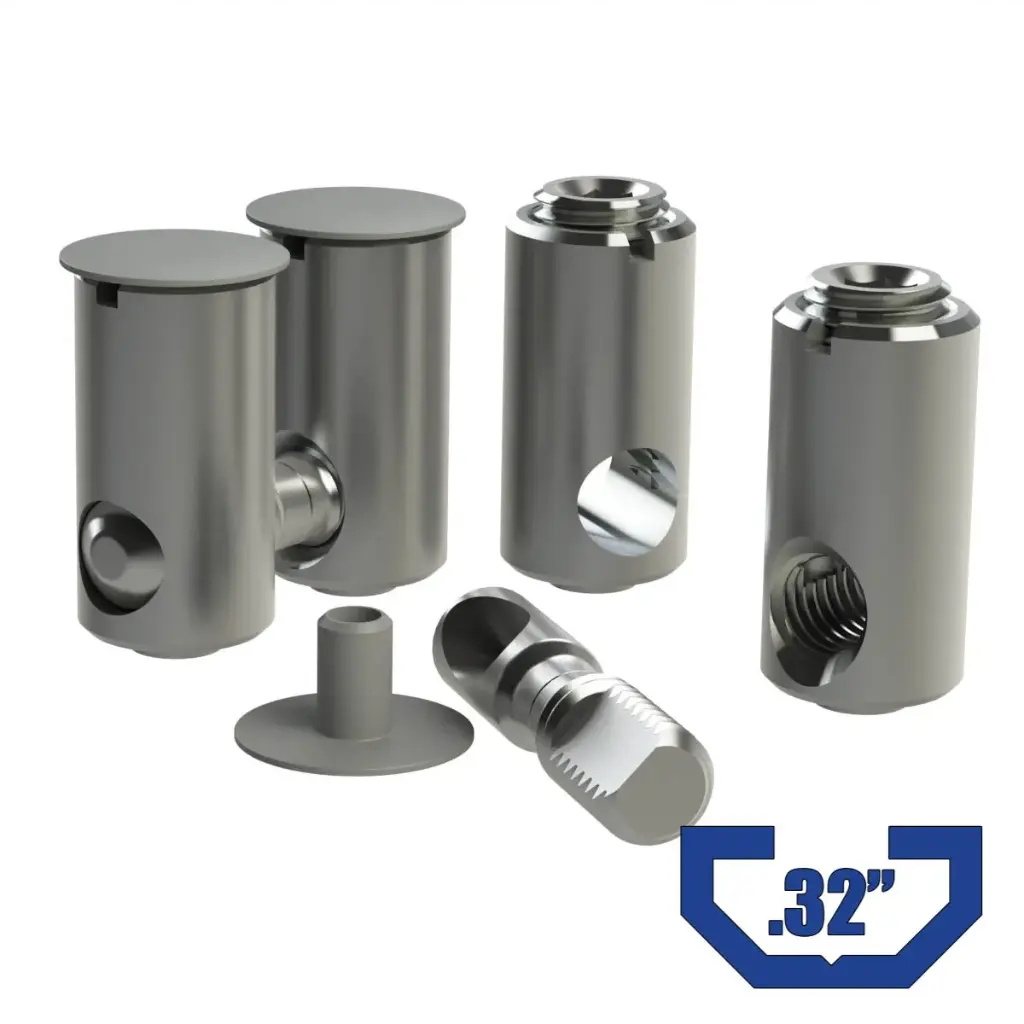

QC32EE

Features:

• Inch and metric profile connector
• Profiles commonly used with: 1.5" Series and 40 Series with 8mm T-slot (End to End)
• Versatile connector allowing adjustability while providing a high strength connection

Machining Requirements:

• Quick connector placement:
  • Drill an 15mm hole 1" deep
  • 1.25in (32mm) away from profile end
  • Bore out centerbore 1/2in (12mm), 1.50in (38mm) Deep

Tools Required:

• 6mm Hex wrench (Allen Key)
