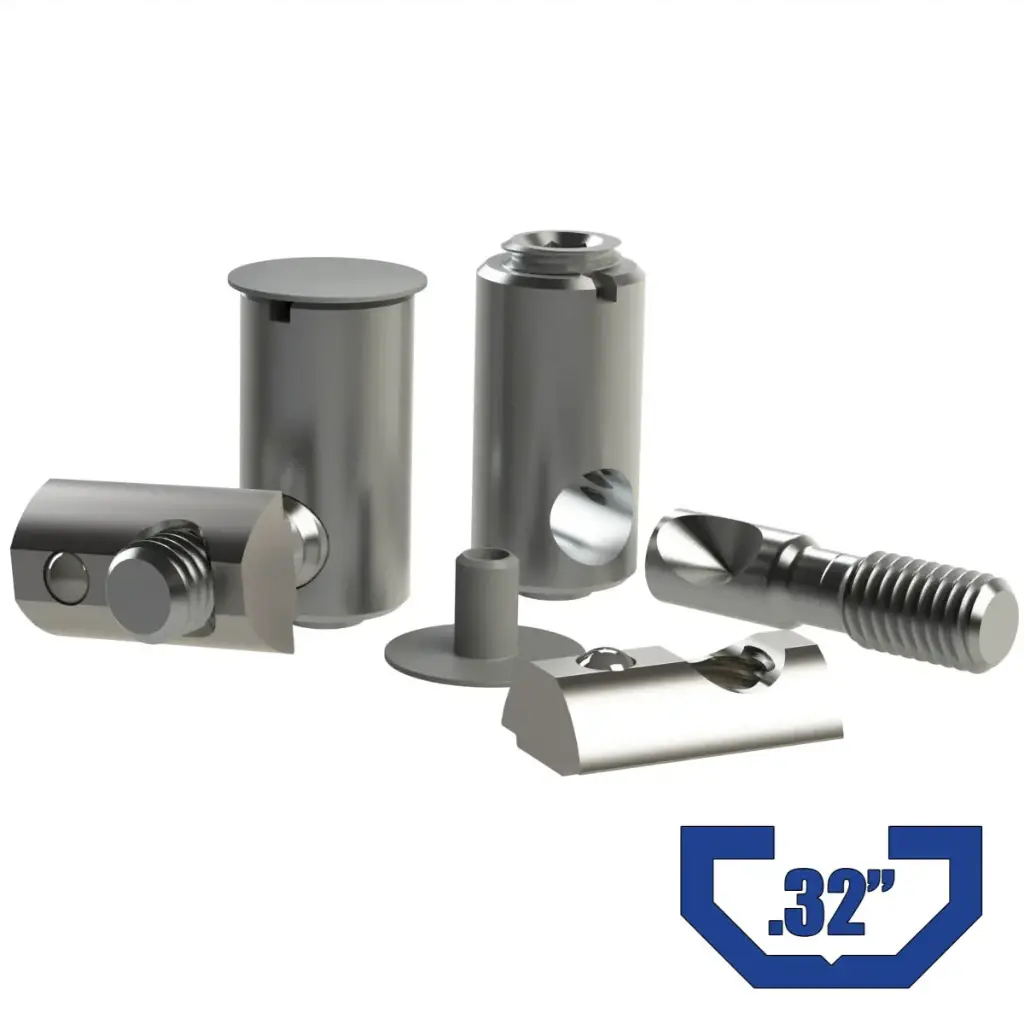

QC32ES

Features:

• Inch and metric profile connector
• Profiles commonly used with: 1.5" Series and 40 Series with 8mm T-slot (End to Side)
• Versatile connector allowing adjustability while providing a high strength connection

Machining Requirements:

• Quick connector placement:
  • Drill an 14.2mm hole 1" deep
  • 0.472in (12mm) away from profile end (center of T-slot)
  • Bore out centerbore 0.354in (9mm), 1in (25.4mm) Deep

Tools Required:

• 6mm Hex wrench (Allen Key)
