RDG45-10

https://www.framingtech.com/web/image/product.template/472742/image_1920?unique=58db5ac

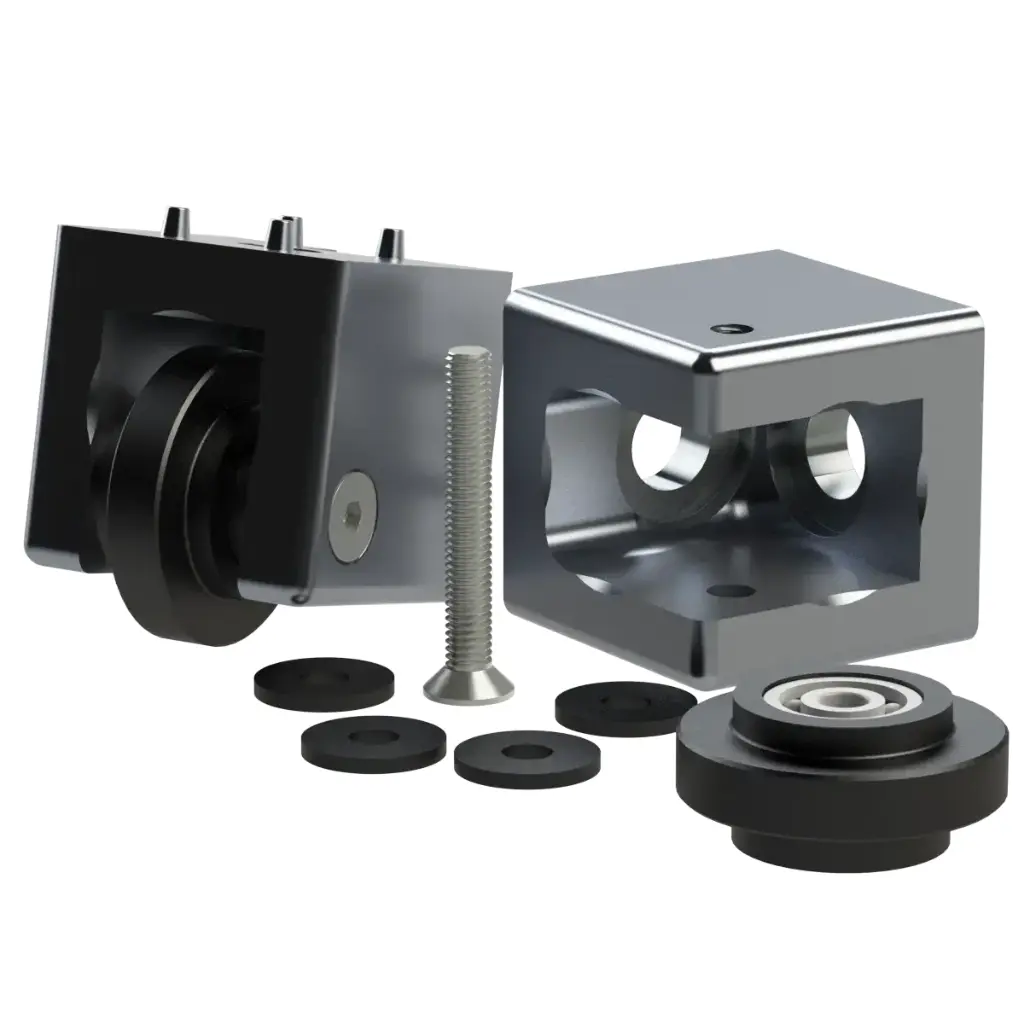

Roller Door Guide for 45x45-10 profile (Use M12x25BHCS-ZC for Block Fastening)

$ 29.59 29.5911 USD $ 29.59

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile connector
  • A roller wheel is incorporated within corner connector
  • Roller wheels roll on the door frame's surface while captured in the T-slot

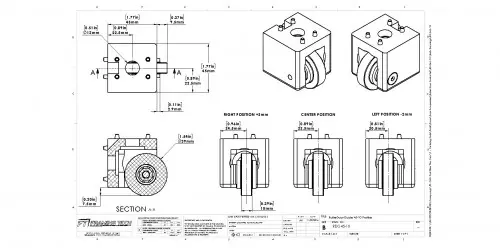

  • To offset slide door to the front or back by 2mm, rearrange the supplied washers
  • Allows the fastening of two pieces of strut at a 90 degree angle
  • Used for 45mm with 10mm T-slot profiles

Machining Requirements:

  • Aluminum profiles need to be tapped M12 x 1" deep

Tools Required:

  • 8mm Socket or wrench
RDG45-10.STEP
