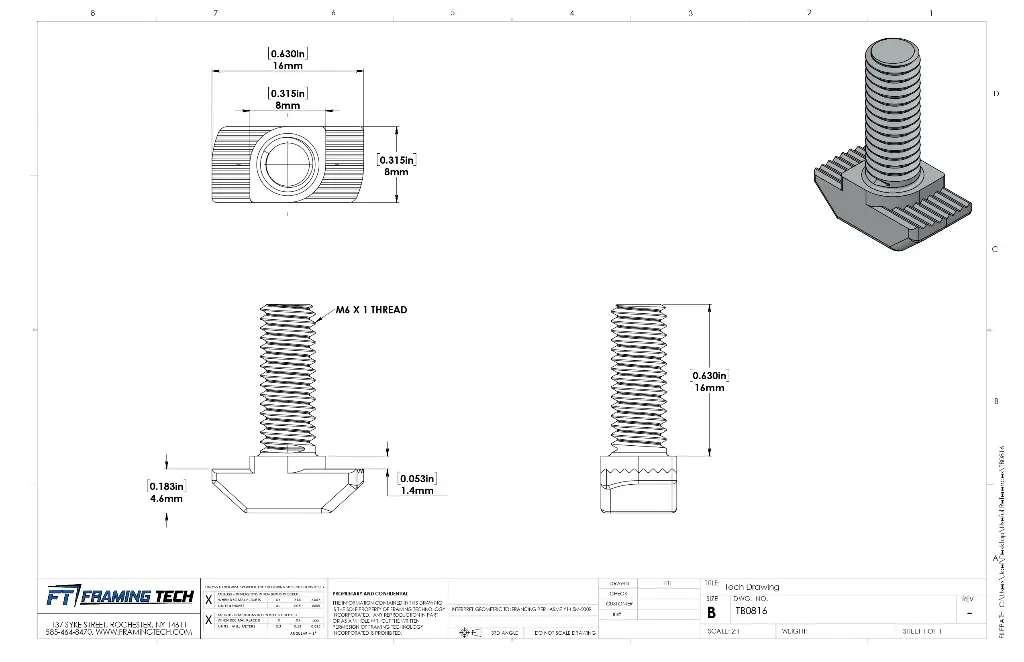

Tech Drawing.webp

TB0816

T-Bolt, 8 Slot, M6 Thread 16mm Long

$ 1.21 1.21275 USD $ 1.21 0.0

This combination does not exist.

Features:

Metric profile fasteners
Ideal for heavy duty holding or mounting applications
Used to fasten panels or components to the T-slot
Serrations on the T-bolt provides a vibration proof and electrically conductive connection
For ESD applications, use as a grounding-lug

Technical Specifications:

Material	Steel
Finish	Zinc plated
Color	Silver
Shear Force	112 lbs (500 N)
Moment Force	443 lbs-in (50 Nm)

TB0816.STEP
