TB0825

https://www.framingtech.com/web/image/product.template/487121/image_1920?unique=be67143

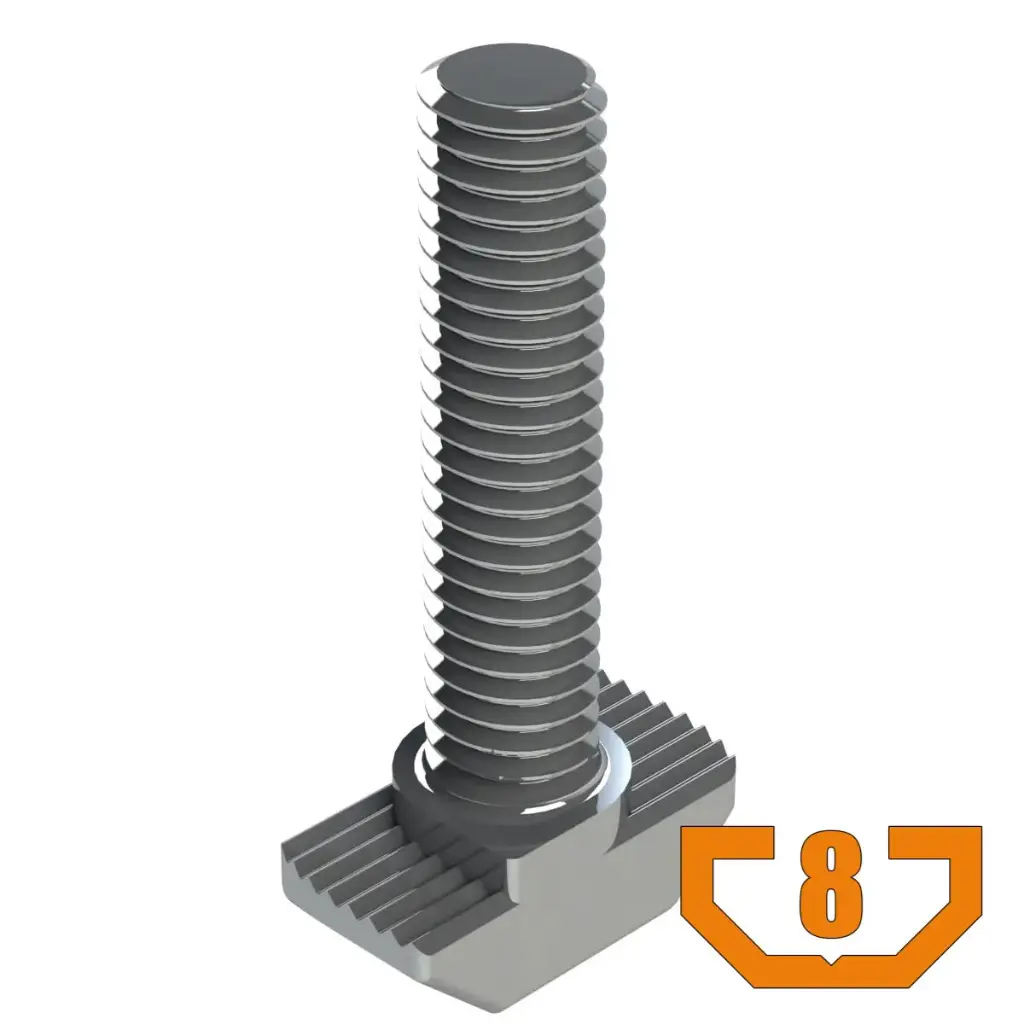

T-Bolt, 8 Slot, M6 Thread 25mm Long

$ 1.76 1.764 USD $ 1.76

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

Features:

  • Metric profile fasteners
  • Ideal for heavy duty holding or mounting applications
  • Used to fasten panels or components to the T-slot
  • Serrations on the T-bolt provides a vibration proof and electrically conductive connection
  • For ESD applications, use as a grounding-lug

Technical Specifications:

MaterialSteel
FinishZinc Plated
ColorSilver
Shear Force112 lbs. (500 N)
Moment Force443 lbs-in (50 Nm)

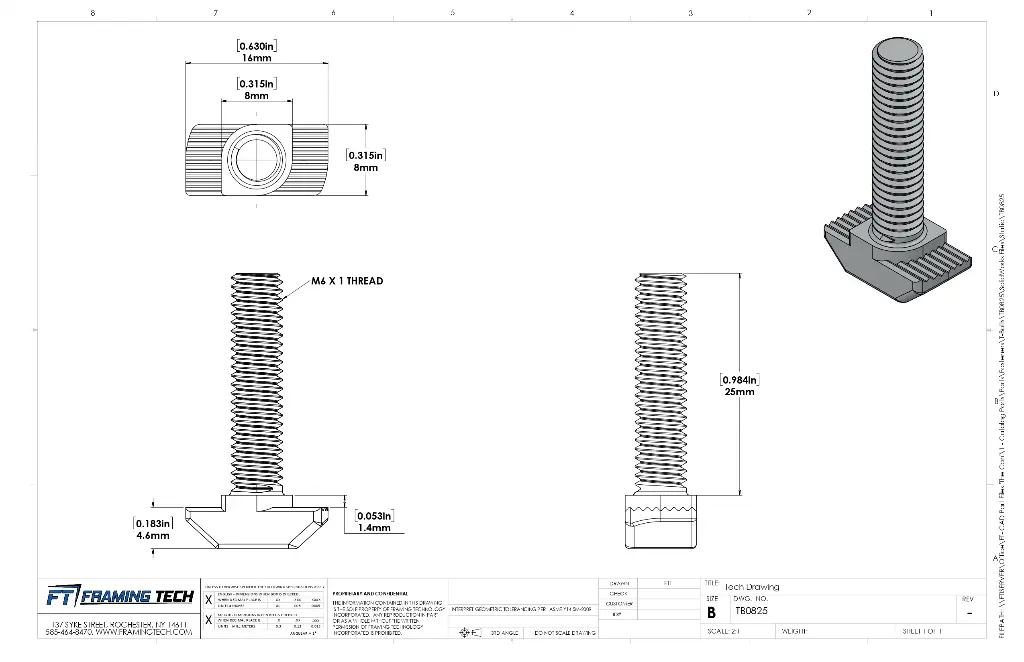

TB0825.STEP
