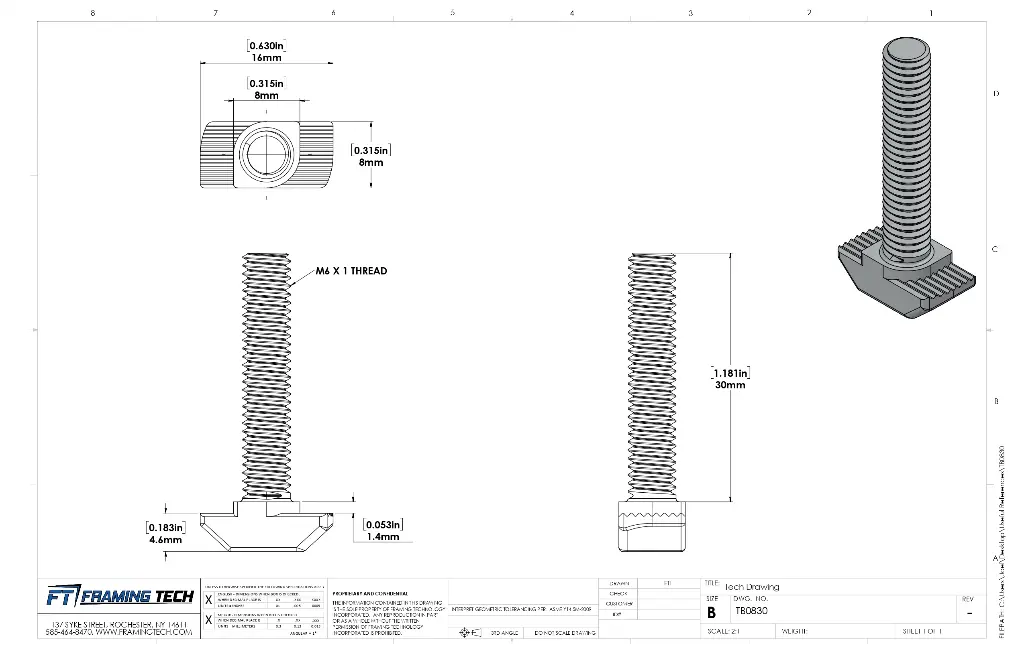

Tech Drawing.webp

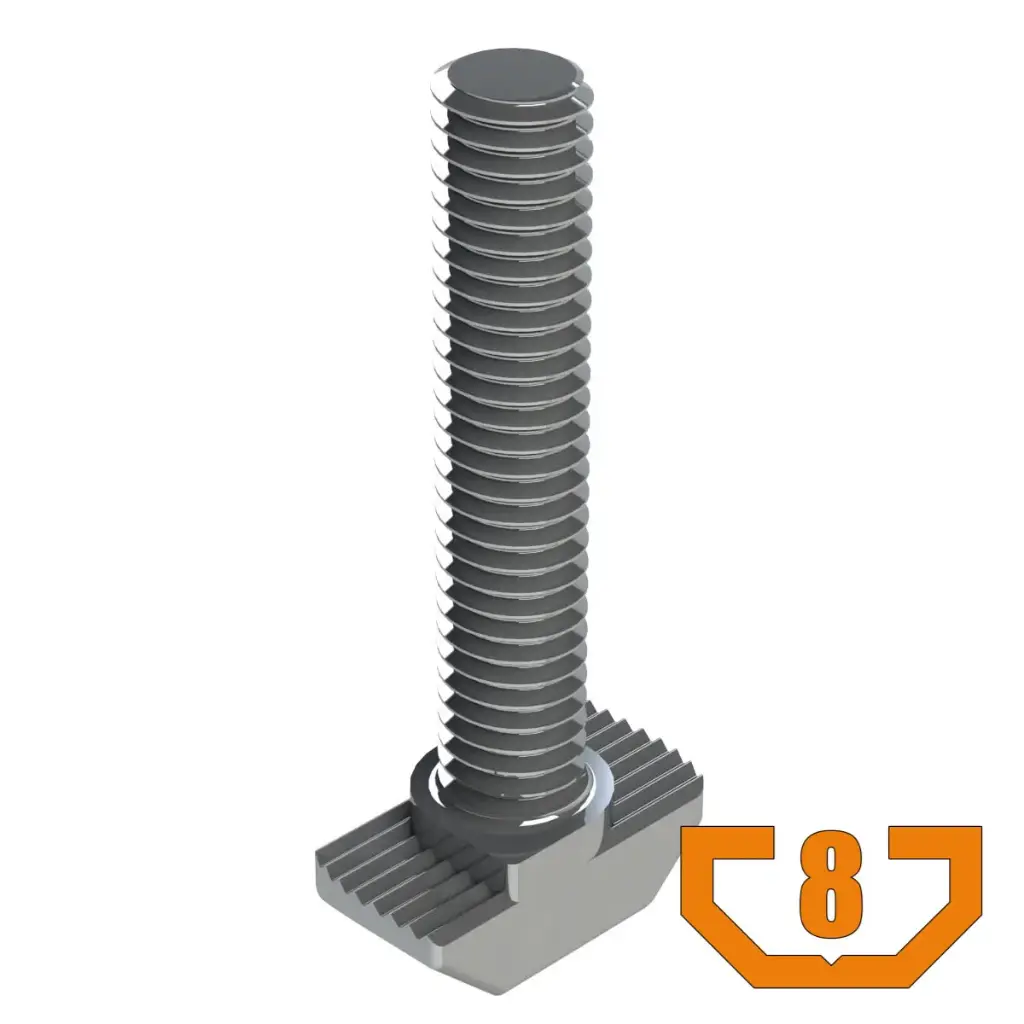

TB0830

T-Bolt, 8 Slot, M6 Thread 30mm Long

$ 2.18 2.18295 USD $ 2.18 0.0

This combination does not exist.

Features:

Metric profile fasteners
Ideal for heavy duty holding or mounting applications
Used to fasten panels or components to the T-slot
Serrations on the T-bolt provides a vibration proof and electrically conductive connection
For ESD applications, use as a grounding-lug

Technical Specifications:

Material	Steel
Finish	Zinc Plated
Color	Silver
Shear Force	112 lbs. (500 N)
Moment Force	443 lbs-in (50 Nm)

TB0830.STEP
