TC1045

https://www.framingtech.com/web/image/product.template/487172/image_1920?unique=94ceaea

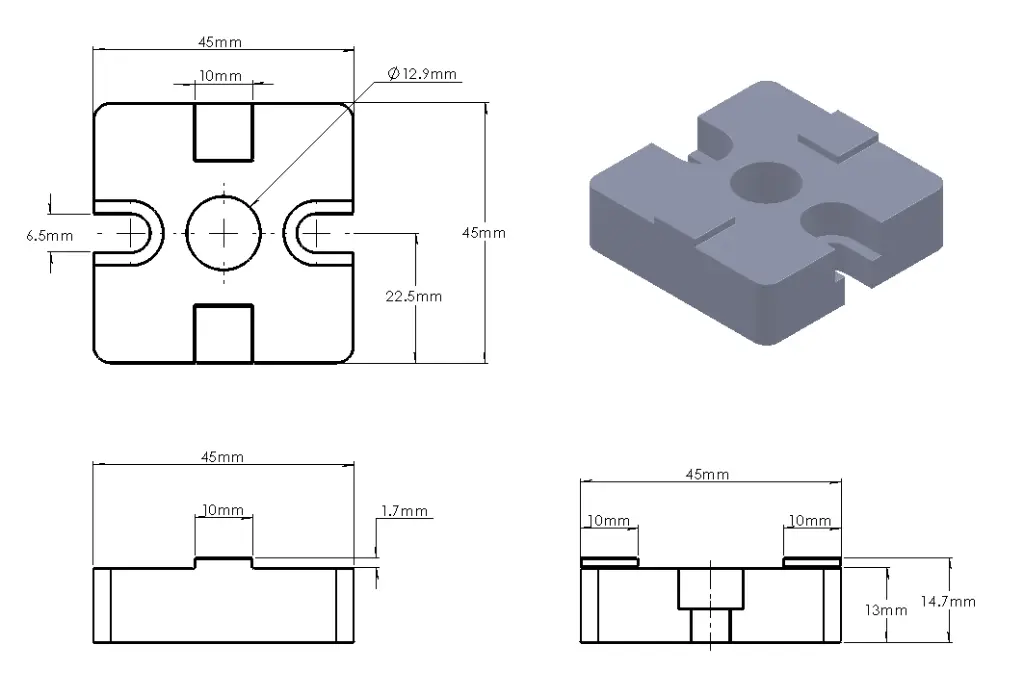

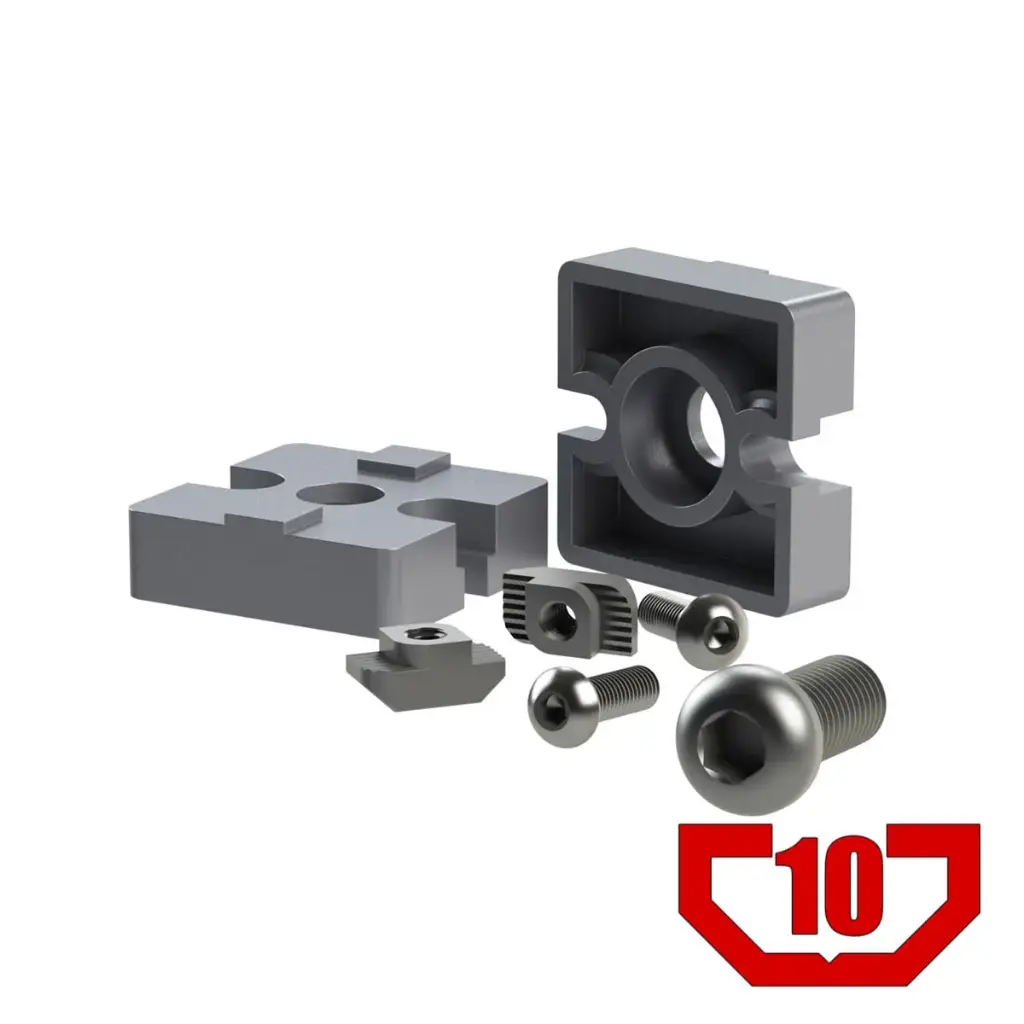

T-Connector, 10mm T-slot, 45mm x 45mm Profile

$ 5.82 5.8212 USD $ 5.82

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric 45mm series profile connector
  • Connects a 10mm T-slot 45mm profile to a 10mm T-slot 45mm profile
  • Providing a high strength anti-rotation connection

Machining Requirements:

  • M12 Mounting Screw:
    • Tap a M12x1.75 - 1.5" deep into the center-bore of a 45x45 profile end

Tools Required:

  • 4mm Hex wrench (Allen Key)
  • 8mm Hex wrench (Allen Key)

Technical Specifications:

MaterialDie-cast Zinc
FinishPlain
ColorGrey
Weight88.6 grams (No Hardware
