TCB40-08

https://www.framingtech.com/web/image/product.template/487174/image_1920?unique=6a0643d

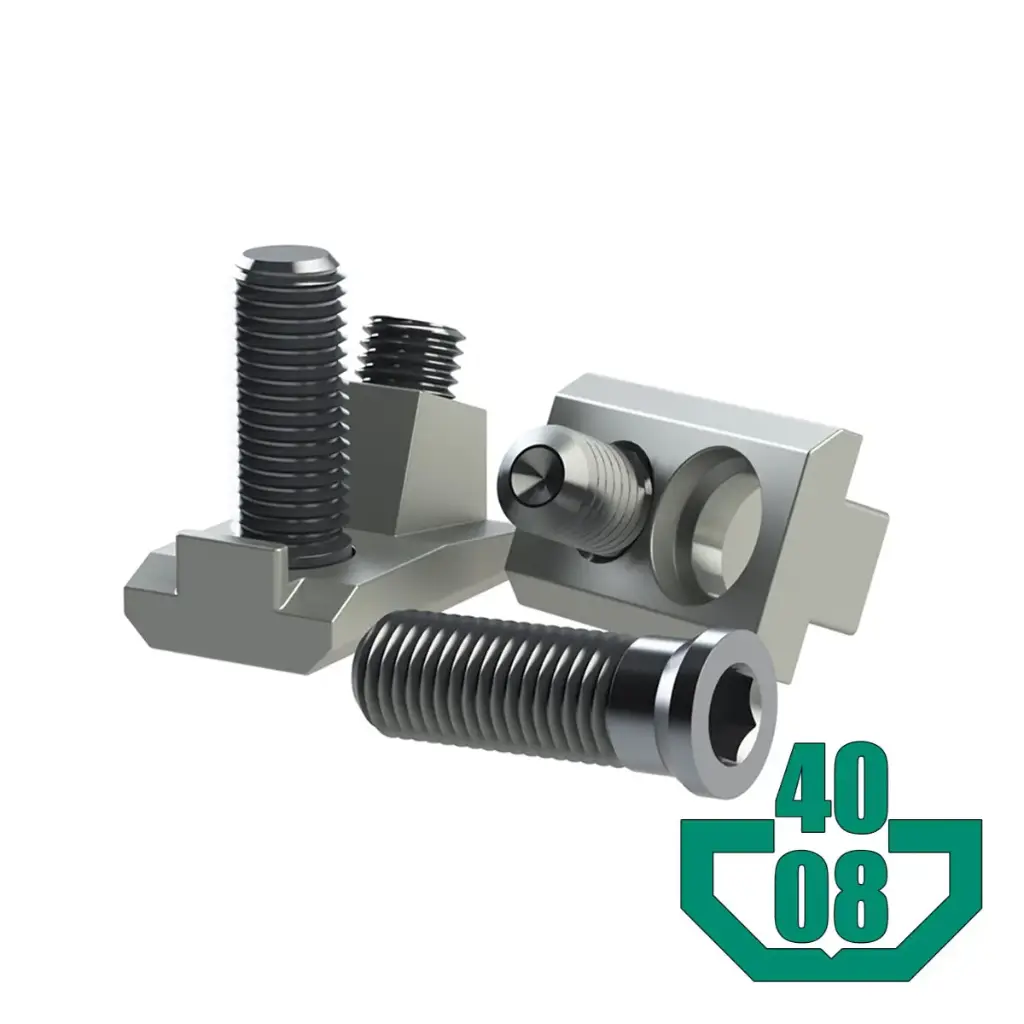

Tilt Connector B with M8 Mounting Screw

$ 19.17 19.17 USD $ 19.17

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • 40mm with an 8mm T-slot profile connector
  • Easy use
  • Body designed to prevent rotation of profile connection
  • Grips into profile end for a strong connection

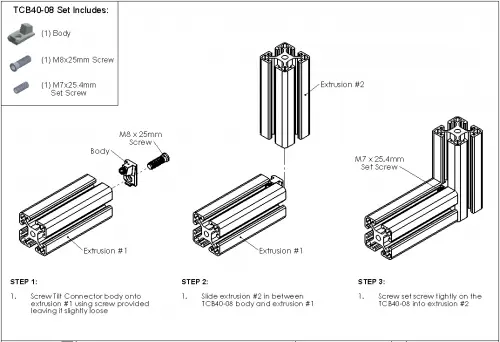

Machining Requirements:

  • Mounting profile requires:
    • Center-bore of connecting profile needs to be tapped for a M8
  • Mating profile requires:
    • No machining required

Tools Required:

  • 4mm Hex wrench (Allen Key) - for M7x25.4mm set screw
  • 6mm Hex wrench (Allen Key) - for M8x25mm screw

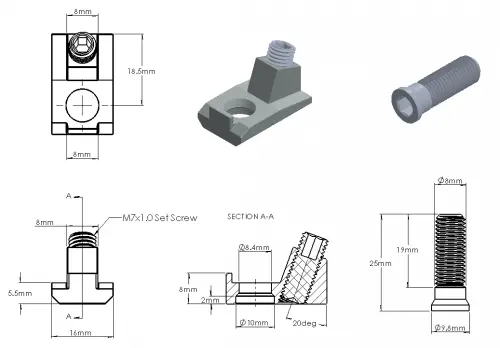

Technical Specifications:

MaterialSteel
FinishZinc Plated
ColorSilver
