Description:

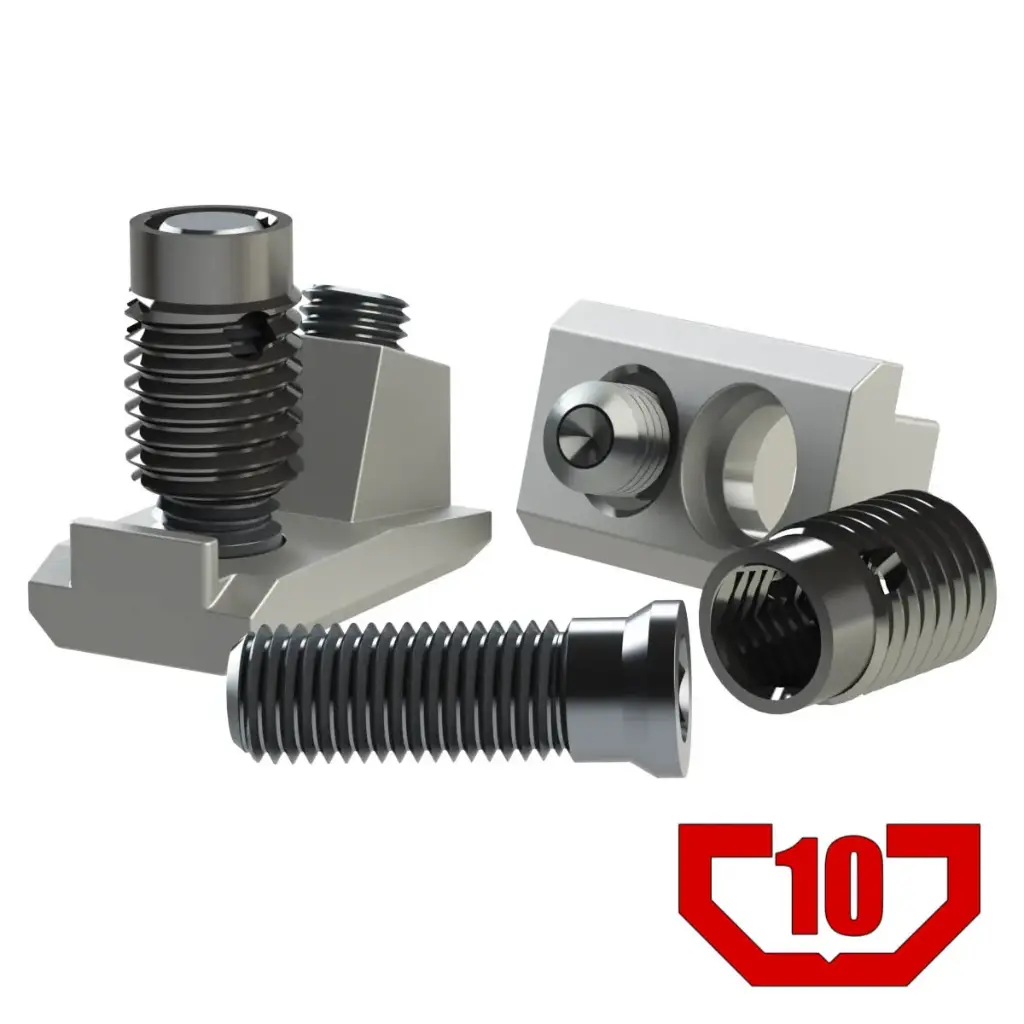

This tilt connector is for connecting the 45mm profile series with 10mm T-slots. With a threaded insert there is no machining required for installation. This makes the tilt connector ideal for an easy quick connector that can be used at any off-site constructions and solutions were machining is not capable.
Features:
- 45mm with a 10mm T-slot profile connector
- Easy use
- Body designed to prevent rotation of profile connection
- Grips into profile end for a strong connection

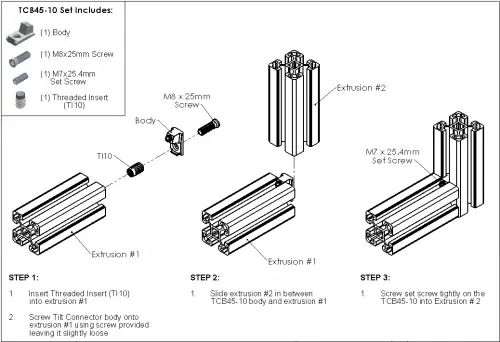

Machining Requirements:
Tools Required:
- 4mm Hex wrench (Allen Key) - for M7x25.4mm set screw
- 6mm Hex wrench (Allen Key) - for M8x25mm screw

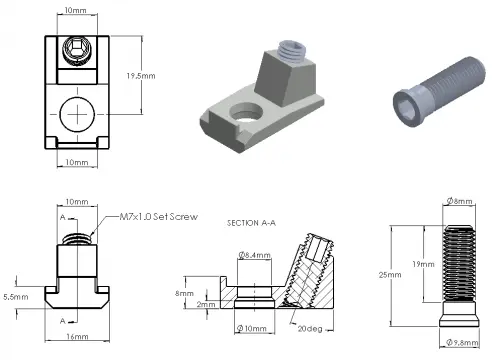

Technical Specifications:
| Material | Steel |
| Finish | Zinc Plated |
| Color | Silver |
