TI10

https://www.framingtech.com/web/image/product.template/487303/image_1920?unique=0f2e5ac

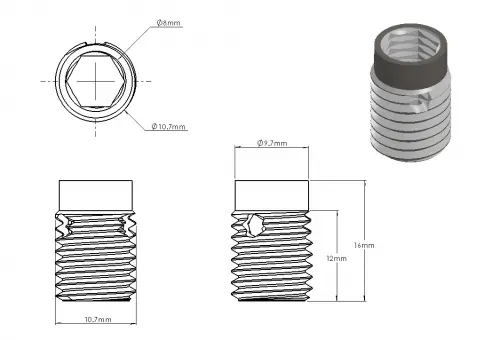

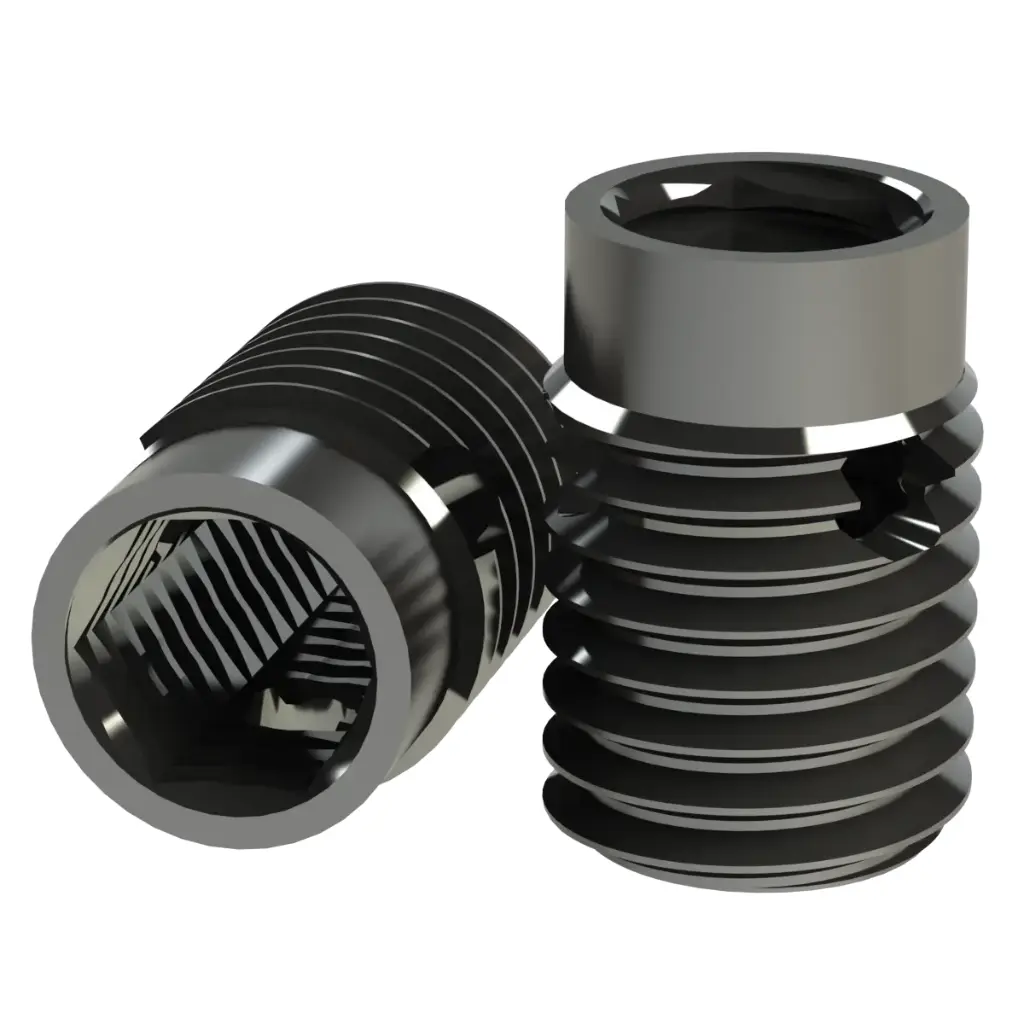

Thread Insert (M8 internal thread)

$ 2.67 2.66805 USD $ 2.67

*

Please enter valid length...

Cut Charge:

Not Available For Sale

This combination does not exist.

Contact Us

Share

ACCESSORY PRODUCTS
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.

Features:

  • Metric profile connector
  • Allows the fastening of two pieces together end to side
  • External Thread = self tapping M12 / Internal Thread = M8 x 1.25
  • Self taps into a 10mm center-bore, which allows for a M8 thread
  • Used for profiles with a 10mm center-bore

Machining Requirements:

  • Mounting profile requires:
    • No machining required

Tools Required:

  • 8mm Hex wrench (Allen Key)

Technical Specifications:

MaterialSteel
FinishZinc Plated
ColorSilver
